Zeta Fyreye MkII Addressable Input/Output Module With Isolator (Loop Powered)
AED 295.31 VAT included
Product Code : fs0415006
Seller: Fireshop1001
Approved by : [woo_pro_badges_extended]
-
free delivery
Above AED1000 in Dubai
-
WARRANTY
For 365 days
-
always authentic
Only Reputed Brands
-
EASY PAYMENT
Multiple payment options
Description

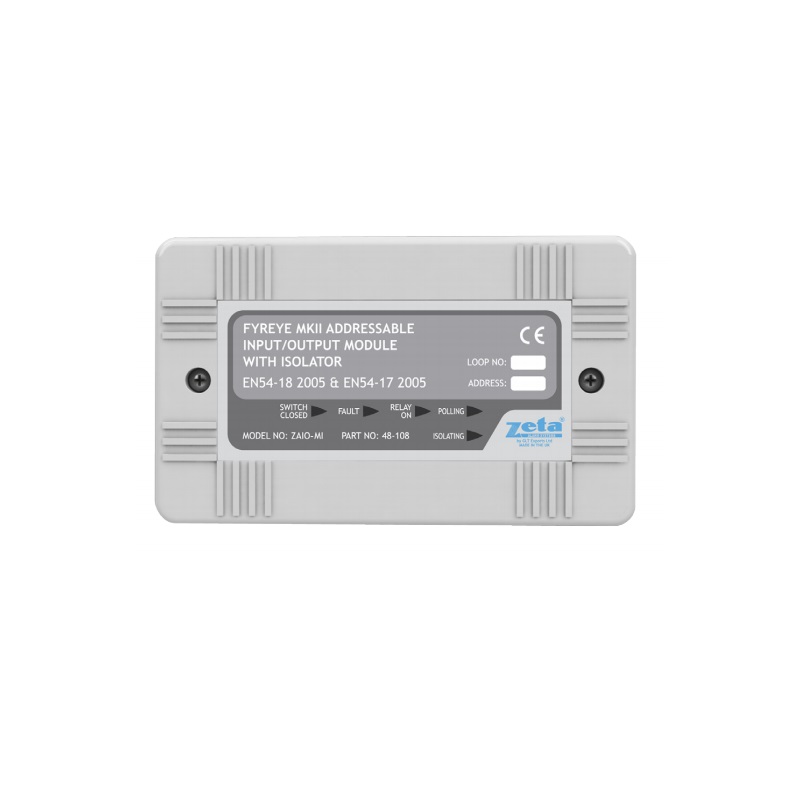

Zeta Fyreye MkII Addressable Input/Output Module With Isolator ( Loop Powered ) in a modern enclosure (2 gang box size) with well protected electronic circuit board to minimize any damages during installation. It is supplied with a back box suitable for surface mount indoor installation.
Features
- Loop powered (60 devices per loop as maximum)
- Hand addressed using the 8 way dip switch OR
- Equipped with short circuit line isolator
- Extensive front unit indications
Specifications
- Brand: Zeta
- Product: Addressable Input/Output Module
- Part Number: 48-108
- Operating Voltage: 17-28V DC
- Quiescent Current @ 24V: 1.0mA
- Switch Input Closed (LED OFF): 1.25mA
- Relay Operated (LED ON): 2.0mA (Max 2 LEDs on)
- Isolating Current: 7.3mA , Input End Of Line: 20k
- Operating Temperature: -10°C to +55°C
- IP rating: IP21C
