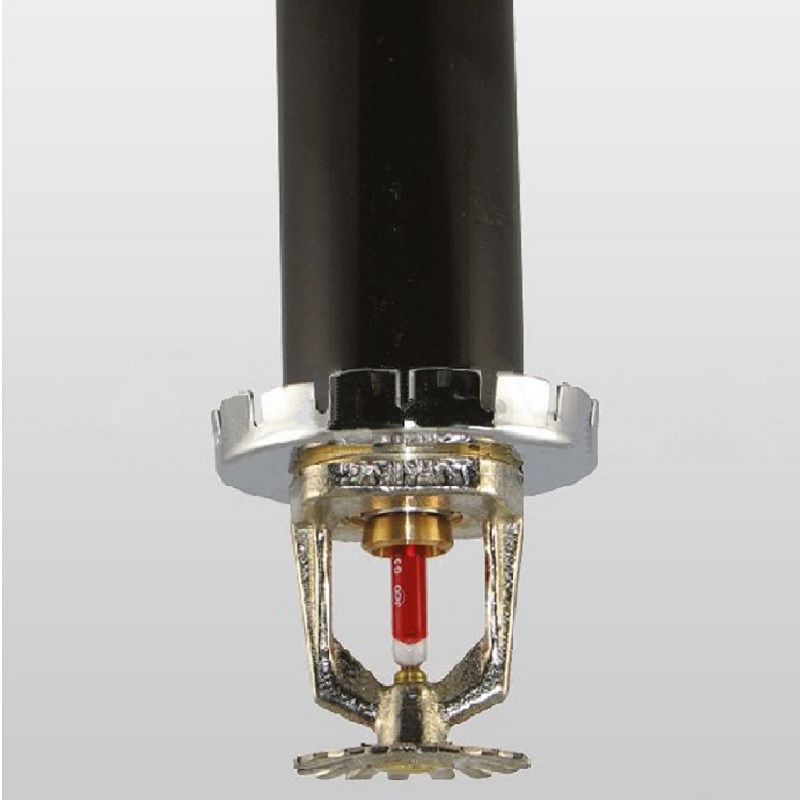

Viking VK154 Standard Response Dry Pendent Sprinkler

Name: Viking VK154 Standard Response Dry Pendent Sprinkler
SKU: fs1118106
Availability: InStock

AED 1,115.63 VAT included

Compare

Product Code : fs1118106 Seller: Approved by : [woo_pro_badges_extended]

free delivery

Above AED1000 in Dubai
WARRANTY

For 365 days
always authentic

Only Reputed Brands
EASY PAYMENT

Multiple payment options

Description

Viking VK154 Standard Response Dry Pendent Sprinklers are thermosensitive spray sprinklers suitable for use in areas subject to freezing. The sprinklers are designed for dry systems and preaction systems where it is necessary to prevent water or condensation from entering the drop nipple before sprinkler operation. They may also be installed in spaces subject to freezing and supplied from a wet system in an adjacent heated area. The special Polyester and Electroless Nickel PTFE (ENT) coatings are listed/approved for installation in corrosive environments.

Features

Designed for use in Light, Ordinary, and Extra Hazard occupancies
Protection areas and maximum spacing shall be in accordance with the tables provided in NFPA 13
Minimum spacing allowed is 6 ft. (1.8 m) unless baffles are installed in accordance with NFPA 13
Locate no less than 4” (102 mm) from walls
Maximum distance from walls shall be no more than one-half of the allowable distance between sprinklers. The distance shall be measured perpendicular to the wall
The sprinkler installation and obstruction rules contained in NFPA 13 for standard spray pendent sprinklers must be followed

Specifications

Product: Dry Pendent Sprinkler
Brand: Viking
Model: VK154
Minimum Operating Pressure: 7 psi (0.5 bar)
Maximum Working Pressure: 175 psi (12 bar). Factory tested pneumatically to 100 psi (6.89 bar)
Thread size: 1” NPT or 25 mm BSP
Frame Casting: Brass UNS-C84400
Deflector: Brass UNS-C26000
Bulb: Glass, nominal 5 mm diameter
