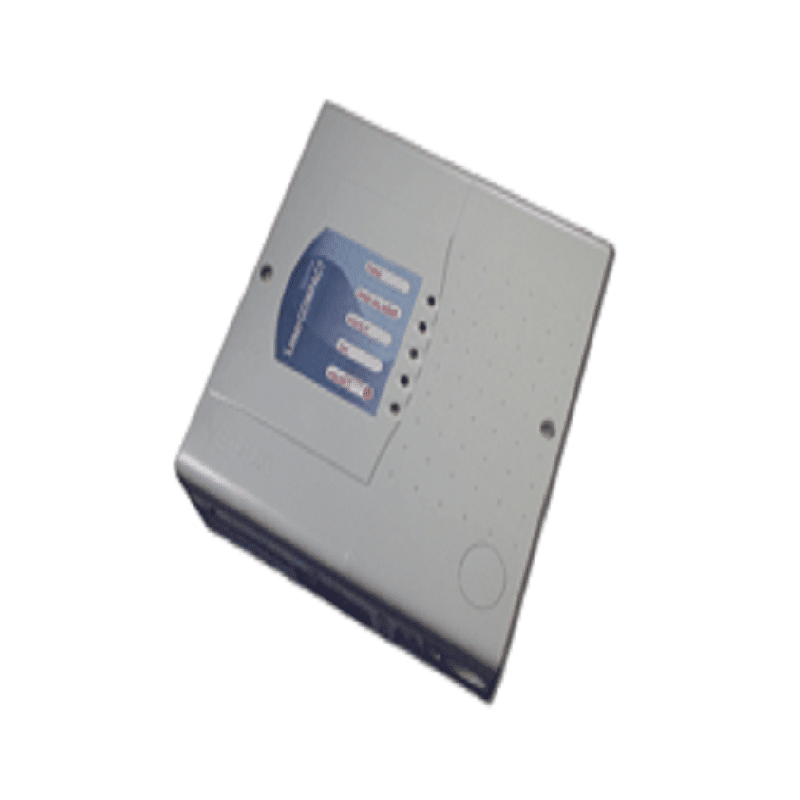

Vesda VLC-50000-MRN Laser Compact Marine Aspirating Smoke detector
AED 12,106.50 VAT included
The VESDA VLC Marine by Xtralis is a tested and certified aspirating smoke detector for use in marine environments. The VESDA VLC Marine aspirating smoke detector is available in two versions, one that interfaces via relays only (RO) and one that interfaces via relays and VESDAnet (VN).
In stock
-
free delivery
Above AED1000 in Dubai
-
WARRANTY
For 365 days
-
always authentic
Only Reputed Brands
-
EASY PAYMENT
Multiple payment options
Description
The VESDA VLC Marine by Xtralis is a tested and certified aspirating smoke detector for use in marine environments. The VESDA VLC Marine aspirating smoke detector is available in two versions, one that interfaces via relays only (RO) and one that interfaces via relays and VESDAnet (VN).
Features
- Absolute smoke detection (coverage of 800m2 or 8,000 sq. ft.)
- Wide sensitivity range (0.005 - 20% obscuration/m and 0.0015 - 6% obscuration/ft)
- Single pipe inlet
- Five (5) status LEDs
- Referencing
- VESDAnet communication (VN)
- Clean air barrier optics protection
- Three (3) alarm levels
- Three (3) programmable relays
- Air flow monitoring, Optional remote display and relay capability, Simple mounting design, AutoLearn
Specifications
- Supply voltage: 18 to 30VDC
- Power consumption: 5.4W quiescent, 5.9W with alarm
- Current consumption: 225mA quiescent, 245mA with alarm
- Fuse rating: 1.6A
- Dimensions (WHD): 225mm x 225mm x 85mm (8 7/8-in x 8 7/8-inx 3 3/8-in)
- Weight: 1.9kg (4.2lbs.)
- Operating conditions: Tested to -25°C to 70°C (-13°F to 158°F); Ambient 5°C to 70°C (41°F to 158°F) (recommended); Sampled Air -20°C to 60°C (-4°F to 140°F)
- Humidity: 10 to 95% RH, non-condensing
- Sampling network: Maximum area of Coverage 800sq.m (8000sq.ft)
- Maximum pipe lengths: 1 x 80m, 2 x 50m
- Computer design tool: ASPIRE2
- IP rating: IP30 (optional IP66 enclosure)
- Cable access: 4 x 25mm (1-in) cable entries
- Cable termination: Screw Terminal blocks 0.2-2.5sq mm (30-12 AWG)
- Sensitivity range: 0.005 to 20% obs/m (0.0015 to 6.25% obs/ft)
