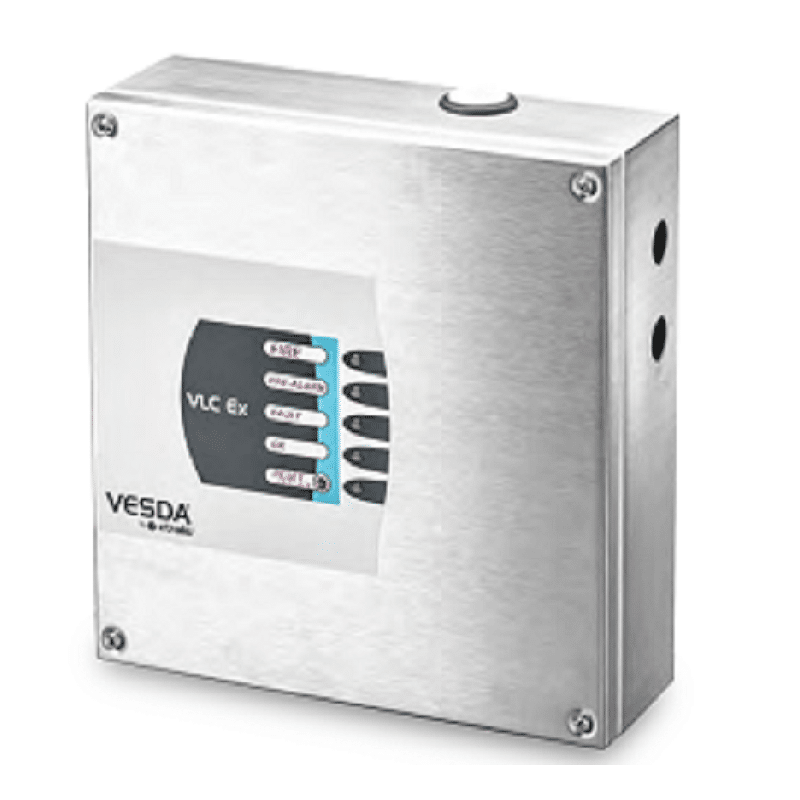

Vesda VLC-500-EX Laser Compact Aspirating Smoke Detector

Name: Vesda VLC-500-EX Laser Compact Aspirating Smoke Detector
SKU: FS107261
Availability: InStock

See all products from vesda

AED 40,083.75 VAT included

Compare

Product Code : FS107261 Brand: Vesda Seller: Fireshop1001 Approved by : [woo_pro_badges_extended]

free delivery

Above AED1000 in Dubai
WARRANTY

For 365 days
always authentic

Only Reputed Brands
EASY PAYMENT

Multiple payment options

Description

Vesda VLC-500-EX Laser Compact Aspirating Smoke Detector has been specifically designed to provide all the benefits of aspirating smoke detection, including very early warning, for the protection of hazardous applications with Zone 2 classification. The VLC-EX is enclosed in a stainless steel housing which is comprised of the main enclosure and the front cover. The main enclosure houses all the key components of the detector. All non-serviceable items such as the main processor board and detector chamber are mounted away from the general access area, protecting them during the installation and servicing process.

Features

Suitable for Zone 2 applications
Optional remote display and relay capability
IP54 rated stainless steel enclosure
Clean air barrier optics protection
VESDAnet communication (VN)
Three (3) Programmable Relays
Absolute smoke detection
Wide sensitivity range
Three (3) Alarm Levels
Five (5) status LEDs

Specifications

Supply voltage: 18 to 30 VDC
Power consumption: 5.4 W quiescent, 5.9 W with alarm
Current consumption: 225 mA quiescent, 245 mA with alarm
Fuse rating: 1.6 A
Dimensions (WHD): 268 mm x 268 mm x 97 mm
Operating conditions: Ambient: -10°C to 55°C, Tested: -10°C to 55°C, Sampled Air: -20°C to 60°C, Humidity: 10% to 95% RH, non-condensing
Storage Temperatures (non-operational): Humidity: Dry (<95%), Temperature: 0°C to 85°C Must not be exposed to sunlight or other radiation sources
Sampling network: Maximum area of Coverage 800 sq.m
Computer design tool: ASPIRE2
Relays: 3 Relays rated 2 A @ 30 VDC, Fire (NO), Pre-Alarm (NO), Alert/Fault (Maintenance & Isolate) (NC/NO), Configurable as latching or non-latching
IP rating: IP54
Enclosure: Grade 304 stainless steel
Weight: 4.9 kg
