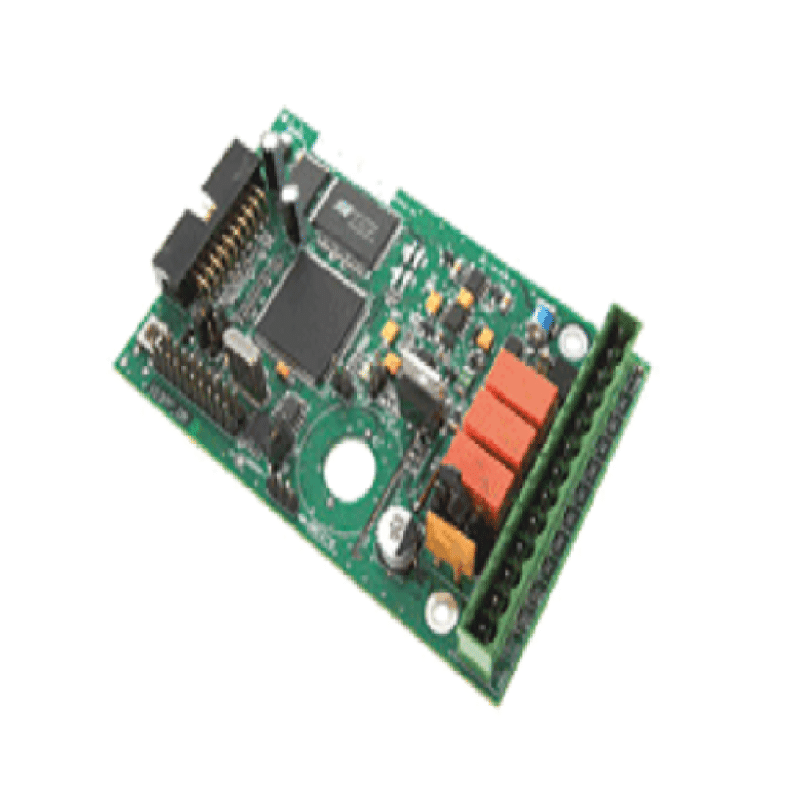

Vesda VIC-020 Multi-Function Control Card

Name: Vesda VIC-020 Multi-Function Control Card
SKU: FS107258
Availability: InStock

See all products from vesda

AED 1,480.50 VAT included

The VESDA VLF Multi-function Control Card (MCC) is an interface card for the range of VESDA VLF by Xtralis aspirating smoke detectors. An MCC expands the range of input and output communications a VESDA VLF can perform.

In stock

Compare

Product Code : FS107258 Brand: Vesda Seller: Fireshop1001 Approved by : [woo_pro_badges_extended]

free delivery

Above AED1000 in Dubai
WARRANTY

For 365 days
always authentic

Only Reputed Brands
EASY PAYMENT

Multiple payment options

Description

Features

Provides two (2) additional relays
Provides an extra General Purpose Input (GPI) with line monitoring
Quick and simple to install
Out-of-the-box operation, with minimal configuration required for extra features
Diagnostic LEDs give visual indication of the card's status
Fully compatible with Xtralis VESDA VLF smoke detectors

Specifications

Dimensions(LxWxH): 110 mm (41/3-in) x 70 mm (2 3/4-in) x 20 mm (13/16-in)
Weight: 0.08 kg (0.176 lb)
Power consumption: 1 W from the detector at 24 VDC (less than 42 mA)
Relay outputs: 2 A at 30 VDC
MPO input power supply: 24 VDC (VIC-030 only)
MPO input current: 100 mA more than MPO output load (VIC-030 only)
MPO output current: 1 A (maximum) (VIC-030 only)
End of line resistor (MPO and GPI): 2.7K Ohm
Operating Conditions: Tested to -10 to 55°C (14 to 131°F); Detector ambient temperature - 0 to 40°C (32 to 104°F)
Humidity: 5% to 95% (non-condensing)
