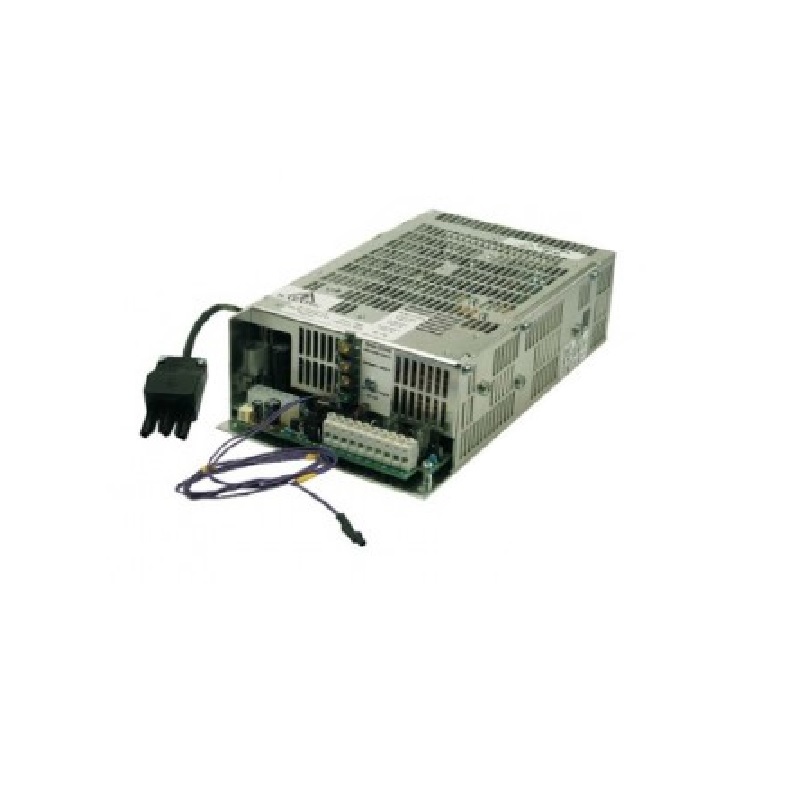

Tyco PSU830 Power Supply Module

Name: Tyco PSU830 Power Supply Module
SKU: fs05022131
Availability: InStock

AED 15,120.00 VAT included

Compare

Product Code : fs05022131 Seller: Approved by : [woo_pro_badges_extended]

free delivery

Above AED1000 in Dubai
WARRANTY

For 365 days
always authentic

Only Reputed Brands
EASY PAYMENT

Multiple payment options

Description

Tyco PSU830 Power Supply Module is a state-of-the-art integrated switch-mode system power supply and battery charger, which can provide up to 5A external and auxiliary loop power during alarm conditions. It has a universal input allowing operation from 100 to 264Vac 50 or 60 Hz. The charging voltage is temperature compensated. The power supply provides full condition and fault monitoring to the system via the FIM or addressable power supply monitor module APM800. The PSU830 incorporates a booster module to provide the correct voltage levels to maximize the performance of the MX DIGITAL protocol. Fault signals (Loss of AC, Battery charger fault, Battery fault, and earth fault) are provided. Battery voltage readings are also provided to the FIM and a volt free fault o/p is also provided.

Features

When used with second PSU830 and MX2 8 loop expansion kit can power 8 fully loaded MX digital loops
Meets the requirements of EN54 part 4 amendment 2
Same footprint and fixings as the PSB821
Can drive 4 fully loaded MX digital loops
Replaces PSB820 and PSM820
Temperature Compensated
Temperature Compensated
Full Fault Monitoring
