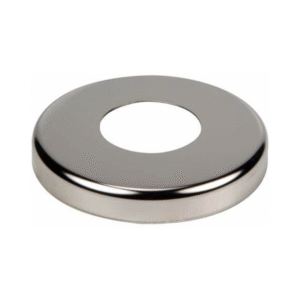

Chrome Round Fire Sprinkler Escutcheon Plate
AED 6.30 VAT included

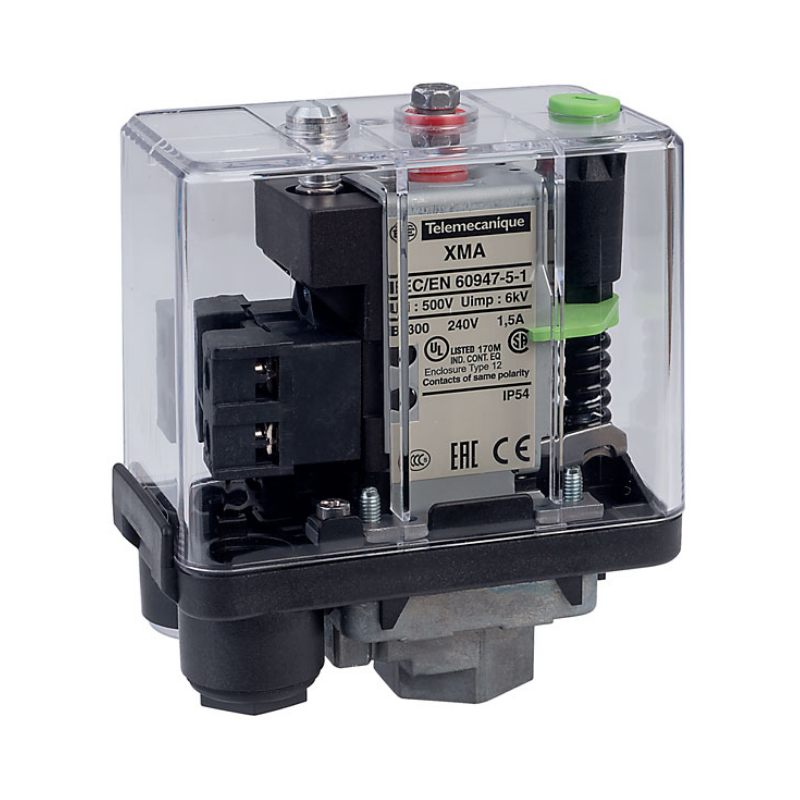

Telemecanique Pressure Switch 12 Bar
AED 147.00 VAT included
Electromechanical pressure switch with a maximum pressure rating of 12 bar, suitable for monitoring air, fresh water, and sea water systems.
In stock
Product Code : fs0507541
Brand: Telemecanique Sensors
Seller: Fireshop1001
Approved by : [woo_pro_badges_extended]
-
free delivery
Above AED1000 in Dubai
-
WARRANTY
For 365 days
-
always authentic
Only Reputed Brands
-
EASY PAYMENT
Multiple payment options
Description
The Telemecanique Pressure Switch 12 Bar is designed for reliable pressure monitoring in various fluid systems. Featuring a G 1/4″ female connection and two normally closed (NC) snap-action contacts, it operates effectively within a pressure range of 0.3 to 12 bar. The device is constructed with durable materials, ensuring longevity and consistent performance in demanding environments.
Features
- Electromechanical operation for reliable performance
- Adjustable pressure range up to 12 bar
- G 1/4" female fluid connection conforming to ISO 228
- Two normally closed (NC) snap-action contacts
- Suitable for air, fresh water, and sea water applications within 0–70°C
- Screw-clamp terminals accommodating up to 2 x 4 mm² wires
- IP54 protection rating as per IEC 60529
- Operates in any mounting position
- Vibration resistance up to 3 gn (10–500 Hz)
- Shock resistance up to 50 gn
Specifications
- Pressure Range: 0.3 to 12 bar
- Fluid Connection: G 1/4" female (ISO 228)
- Contact Configuration: 2 NC snap-action contacts
- Electrical Connection: Screw-clamp terminals (max 2 x 4 mm²)
- Cable Entry: 2 x Pg 13.5 plastic cable glands (9–13 mm cable diameter)
- Operating Temperature: 0 to 70°C
- Enclosure Material: PA impregnated with fiberglass
- Fluid-Contact Materials: Canvas-covered nitrile and chromated zinc alloy
- Protection Rating: IP54 (IEC 60529)
- Compliance: CE, IEC 60947-4-1
