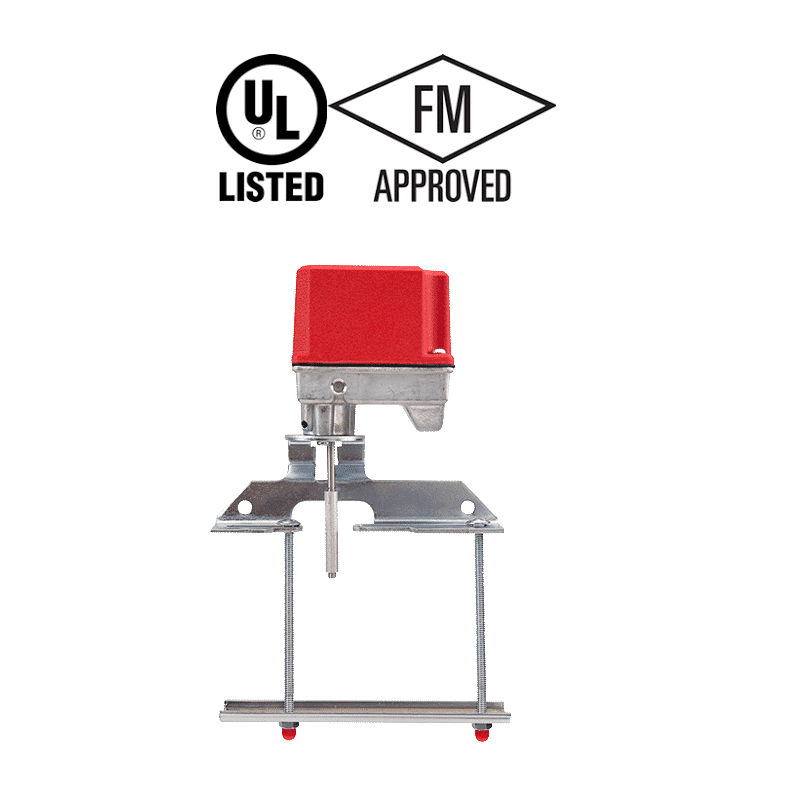

System Sensor OSY2 Sprinkler Supervisory Switch

Name: System Sensor OSY2 Sprinkler Supervisory Switch
SKU: fs10738
Availability: InStock

See all products from system-sensor

AED 577.50 VAT included

Compare

Product Code : fs10738 Brand: System Sensor Seller: Fireshop1001 Approved by : [woo_pro_badges_extended]

free delivery

Above AED1000 in Dubai
WARRANTY

For 365 days
always authentic

Only Reputed Brands
EASY PAYMENT

Multiple payment options

Description

System Sensors OSY2 Supervisory Switch is used to monitor the open position of an Outside Screw and Yoke (OS&Y) type gate valve. The OSY2 consists of a rugged housing, intended for indoor and outdoor use. When installed with the actuator in the vertical position, the OSY2 is NEMA 3R rated per UL. The OSY2 features a user-friendly mounting bracket and adjustable shaft to permit mounting to most OS&Y valves, ranging in size from 1? to 12?.

Features

Single side conduit entry does not require right angle fittings
Two SPDT contacts are enclosed in a durable terminal block for added strength
100% synchronization activates both alarm panel and local bell simultaneously
Three position switch monitors vandal and valve close signals
Adjustable length actuator eliminates the need for cutting the shaft
User-friendly mounting bracket fits newer valve yokes
NEMA 3R rated enclosure

Specifications

Product: Grooved OSandY Gate Valve
Brand: System Sensor
Contact Ratings: Two sets of SPDT (Form C) 10.0 A @ 125/250VAC 2.5 @ 6/12/24VDC
Enclosure Rating: UL indoor/outdoor, NEMA 3R when mounted with the actuator vertical
Overall Switch Dimensions: 53 /4?H x 3 1 /2?W x 31 /4?D (14.6cm x 8.9cm x 8.2cm)
Operating Temperature Range: 32ºF to 120°F ( 0ºC to 49ºC) NOTE: The OSY2 will operate from 40ºF to 120ºF ( 40ºC to 49ºC); however UL does not test control valve supervisory switches below 32ºF (0ºC).
Cover Tamper Switch: Standard with ULC model Optional for UL model, part no. 546 -7000
Conduit Entrances: One single side open for 1 /2? conduit
Bracket Span: 2 1 /4?H x 6 3 /4?W x 1?D (5.7cm x 17.1cm x 2.5cm)
Maximum Stem Extension: 25/8? (6.7cm)
Service Use: Automatic Sprinkler: NFPA 13 One or Two Family Dwelling: NFPA 13D Residential Occupancies up to 4 stories: NFPA 13R National Fire Alarm code: NFPA 72
Warranty: 3 years
Shipping Weight: 2.8 lbs. (1.3 kg)
