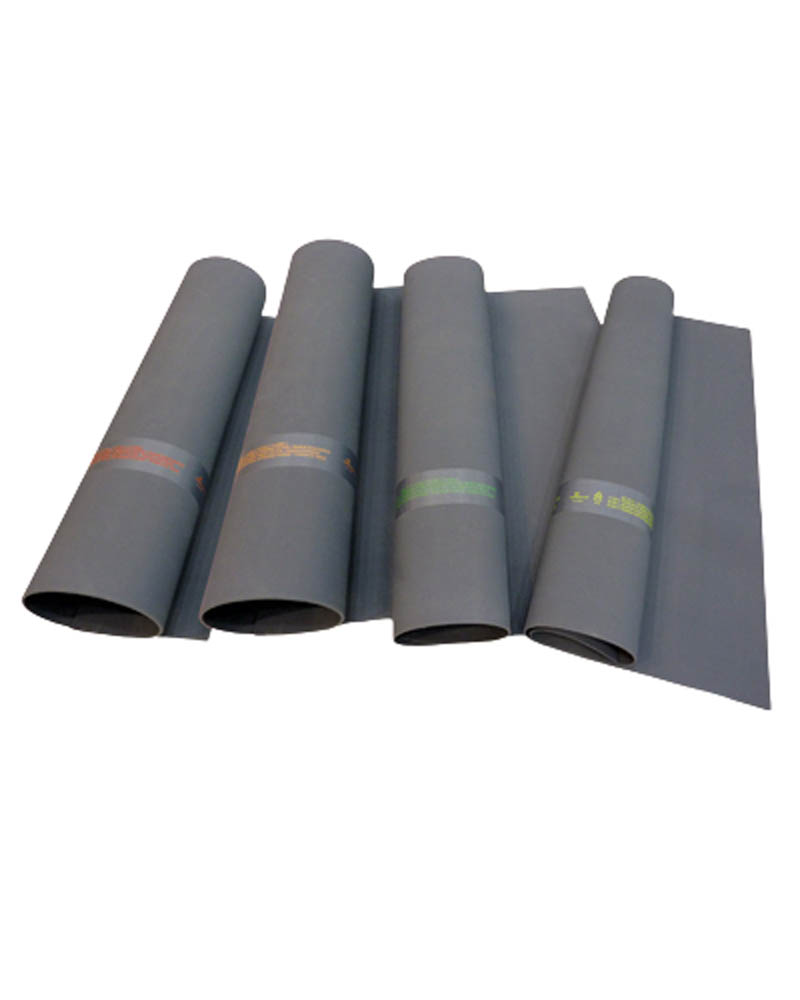

Sofamel 585 AD Insulating Mat Class 3
Product Code : fs0502991
Seller: Fireshop1001
Approved by : [woo_pro_badges_extended]
-
free delivery
Above AED1000 in Dubai
-
WARRANTY
For 365 days
-
always authentic
Only Reputed Brands
-
EASY PAYMENT
Multiple payment options
Description
Electrical Insulation mats are made of rubber. Rubber, due to its properties of resistivity, is used in many industrial applications throughout industry to insulate and protect; it is an obvious choice for electrical safety matting and is tested vigorously to ensure the level of protection is met.
Work Voltage : 26.6 kV
Test Voltage: 30 kV
Supported voltage: 40 kV
According to the Standard IEC 61111: Live working – Electrical insulating matting.
Features
- Hardness: 71 Shore A
- Specific weight: 1.51 g/cm3 (specific gravity)
- Tensile Strenght: 75.5 Kg/cm2
- Elongation at break: 362%
- Resistance to tearing: 20 Kg/cm2
- Acids and Bases diluted - Moderate
- Hydrocarbon - Not recommended
- Organic solvents - Not recommended
Specifications
- Brand: Sofamel
- Specific Rubber Base: Natural Rubber SBR
- Hardness: 71 Shore A
- Tensile Strength: 75.5 Kg/cm2
- Conform: IEC 61111
- Color: Grey
- Class: 3
