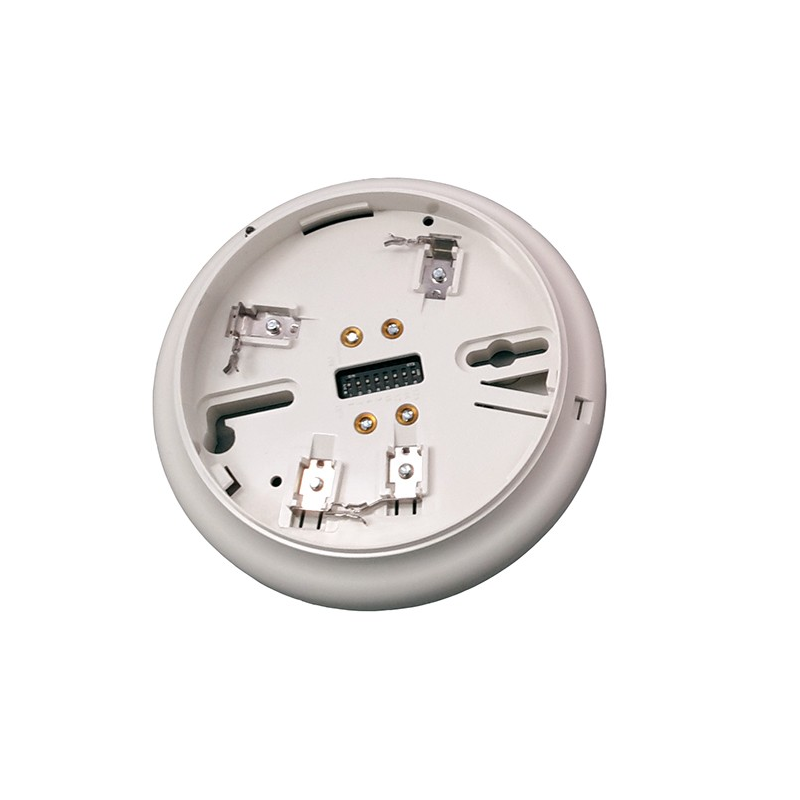

Simplex 4098-9793 TrueAlarm IDNet Isolator Sensor Base

Name: Simplex 4098-9793 TrueAlarm IDNet Isolator Sensor Base
SKU: fs1118191
Availability: InStock

AED 441.00 VAT included

Compare

Product Code : fs1118191 Seller: Approved by : [woo_pro_badges_extended]

free delivery

Above AED1000 in Dubai
WARRANTY

For 365 days
always authentic

Only Reputed Brands
EASY PAYMENT

Multiple payment options

Description

Simplex 4098-9793 TrueAlarm IDNet Isolator Sensor Base provides Simplex TrueAlarm analog sensor operation and also provides IDNet communications isolation to improve installation convenience and increase system integrity. Isolation is automatically activated at the base when an output short circuit is detected and isolation can also be selected per base manually from the control panel to assist with troubleshooting wiring problems.

Features

When panel mounted quad isolation is also required for 4100ES and 4010ES panels, use IDNet+ Modules (see diagram notes and individual panel data sheets)
Compatible with: Simplex fire alarm control panel models 4100ES, 4010ES, 4008, 4010, and 4100U
Can be installed up to 250 total allowing isolation directly to the device level (200 total with 4008)
UL listed to Standard 268; ULC listed to Standard S529
Base mounted LED indicates sensor status
Designed for EMI compatibility

Specifications

Product: Isolator Sensor Base
Brand: Simplex
Model: 4098-9793
Power and Communications: IDNet communications, one address per base
Distance Specification: Maximum line resistance between panel and isolator, or between isolators is 10 ohms; [18 AWG (0.82 mm2 ) = 780 ft (238 m)]
IDNet Connections: Screw terminals for in/out wiring, 18 to 14 AWG (0.82 to 2.08 mm2 )
Housing Color: Frost white
UL Listed Temperature Range: 32° F to 100° F (0° C to 38° C)
Operating Temperature Range: 15° F to 122° F (-9° C to 50° C)
Humidity Range: 10 to 95% RH, from 32° F to 122° F (0° C to 50° C)
