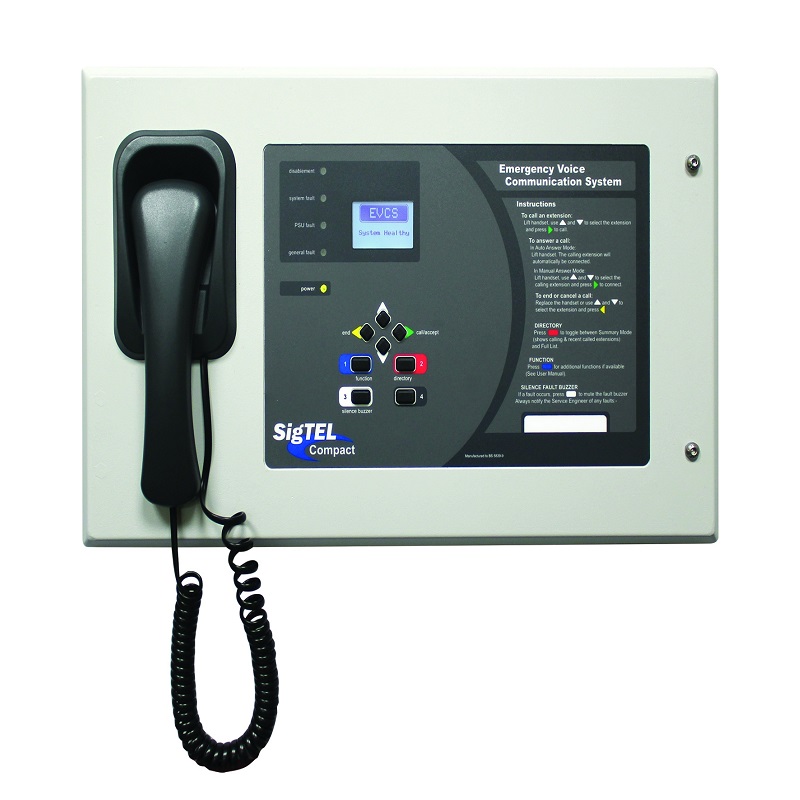

SigTEL ECU-16 Line Master Controller
AED 9,647.40 VAT included
SigTEL ECU-16 Line Master Controller A new 16 line Master Controller for use with our SigTEL disabled refuge, fire telephone and stadium marshalling system. Allows operators to communicate with up to four disabled refuge or fire telephone outstations, Includes an attractive semi-recessed handset. Improved SigTEL networking capability allows systems of up to 224 lines to be created with optional/additional desk unit control.
Description
SigTEL ECU-16 Line Master Controller A new 16 line Master Controller for use with our SigTEL disabled refuge, fire telephone and stadium marshalling system. Allows operators to communicate with up to four disabled refuge or fire telephone outstations, Includes an attractive semi-recessed handset. Improved SigTEL networking capability allows systems of up to 224 lines to be created with optional/additional desk unit control.
Backlit LCD and unique ‘auto-learn’ facility allow fast system set up can be semi-flush mounted using an AFP385 bezel. The operation can be maintained for 24 hours (standby) and 3 hours (in use) using 2 x 12V 7 Ahr batteries. Easily interfaced with NC951 accessible toilet alarms, PDA range hearing loop systems, strobes, CCTV activation relays, etc.
Features
- Improved networking capabilitiescoming soon allowing systems up to 224 lines and optional desk controllers - contact our sales desk for details.
- a new-look 16 line Master Controller for use with our SigTEL disabled refuge, fire telephone and stadium marshallingsystem.
- Easily interfaced to NC951 accessible toilet alarms, PDA audio-frequency induction loop systems, strobes, CCTV activation relays, etc
- Operation can be maintained for 24 hours (standby) and 3 hours (in use) using 2 x 12V 7 Ahr batteries.
- Allows operators to communicate with up to 16disabled refuge or fire telephone outstations.
- Unique 'auto-learn' facility allows fast system set up.
- Can be semi-flush mounted using an AFP385 bezel.
- Supplied with a backlit LCD and handset.
- True duplex speech.
Specifications
- Product: Line master Controoller
- Brand: sigTel
- Model: ECU-16
- Mains supply: 230V 50/60Hz
- Mains rated current: 500mA.
- Internal power supply: 19V-28.5V (27V nominal). Ripple 7V maximum (battery fault).
- Total output current limited to 1.5A @ 230Vac
- Max battery size and type: 2 x 12V 7Ah VRLA connected in series.
- No. of lines: 16 (note this unit is NOT compatible with our ECU-8S 8 line expansion unit).
- Auxiliary relays Changeover fault relay (failsafe). 30V 1A max.
