SIBCA-300mm OS&Y Gate Valve 300 PSI Flanged-GN-0372-FF UL/FM Listed
AED 3,816.75 VAT included
In stock
-
free delivery
Above AED1000 in Dubai
-
WARRANTY
For 365 days
-
always authentic
Only Reputed Brands
-
EASY PAYMENT
Multiple payment options
Description

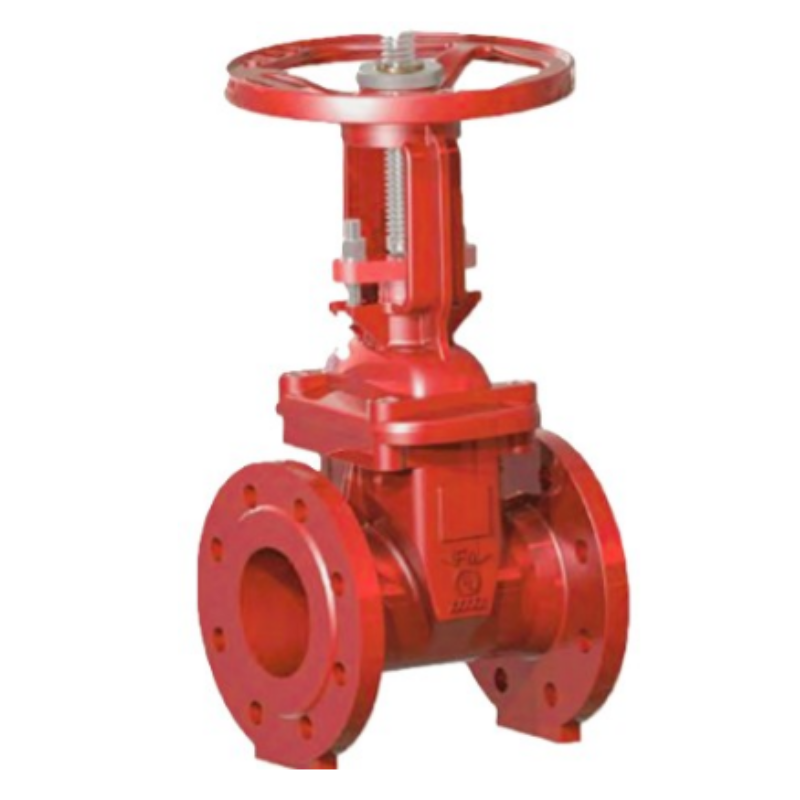

The SIBCA 300mm OS&Y Gate Valve (GN-0372-FF) is a robust, high-quality valve designed for fire protection and industrial piping systems. With a pressure rating of 300 PSI, this flanged gate valve ensures reliable water flow control in fire suppression networks.
As a UL/FM Listed product, it meets international fire safety standards and guarantees superior performance in critical applications. Featuring an Outside Screw & Yoke (OS&Y) design, it provides a clear visual indication of valve position, ensuring easy inspection and maintenance.
This gate valve is widely used in fire sprinkler systems, hydrant networks, and industrial piping applications where durability, compliance, and safety are paramount.
Features
- Resilient seated OS&Y design
- UL listed and FM approved
- 300 PSI working pressure
- Flanged x Flanged end connection
- Ductile iron body and bonnet for durability
- EPDM coated wedge for reliable sealing
- Stainless steel stem and wedge nut
- Low flow resistance when fully open
- Suitable for fire protection systems
- Compliant with UL262 / AWWA C515 / BS5163
Specifications
- Model: GN-0372-FF
- Size: 300mm (12 inch)
- Working Pressure: 300 PSI
- Working Temperature: -10ºC to 120ºC
- End Configuration: Flange x Flange
- Flange Standard: ANSI B16.1 Class 125 / B16.42 Class 150, BS EN1092-2 PN16
- Body Material: Ductile Iron A536 65-45-12
- Stem: Stainless Steel AISI 304
- Wedge: Ductile Iron EPDM Coated
- Approvals: UL Listed / FM Approved
- Brand: Sibca
