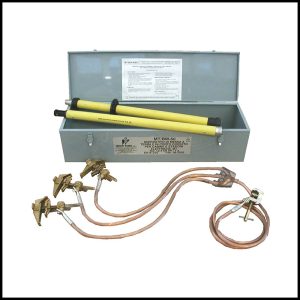

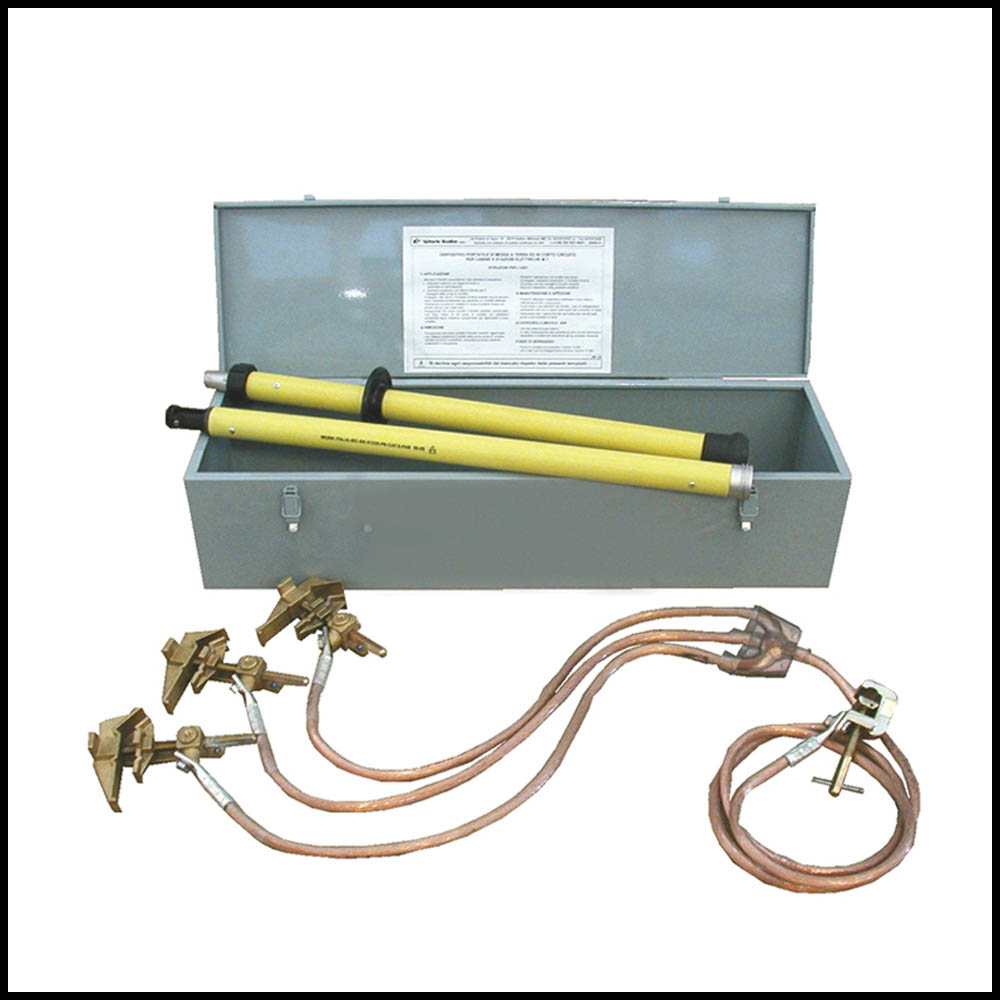

Short Circuiting And Grounding Equipment With Universal Contact Clamps For Electric Cabins And Mv Installations

3 Screw type universal contact clamps type PC/BM made by press forged brass tested for high intensity current and fitted with three different attack points for copper cable. Hexagonal tang made by galvanized steel. 3 Extra flexible electrolytic copper cables of short circuit, covered by transparent PVC sheath, for the connection between the three contact clamps and the central connector, length 0,75 m, complete, at the extremities, of tinning copper lugs and reinforcements by transparent heat-shrink sheath. Insulating fiberglass rod type PE2/135 EF made by epoxy resin reinforced by fiberglass certified in conformity with the International Standard CEI EN 61235, in two elements connected between them by quick coupler. Length 1,35 m.
