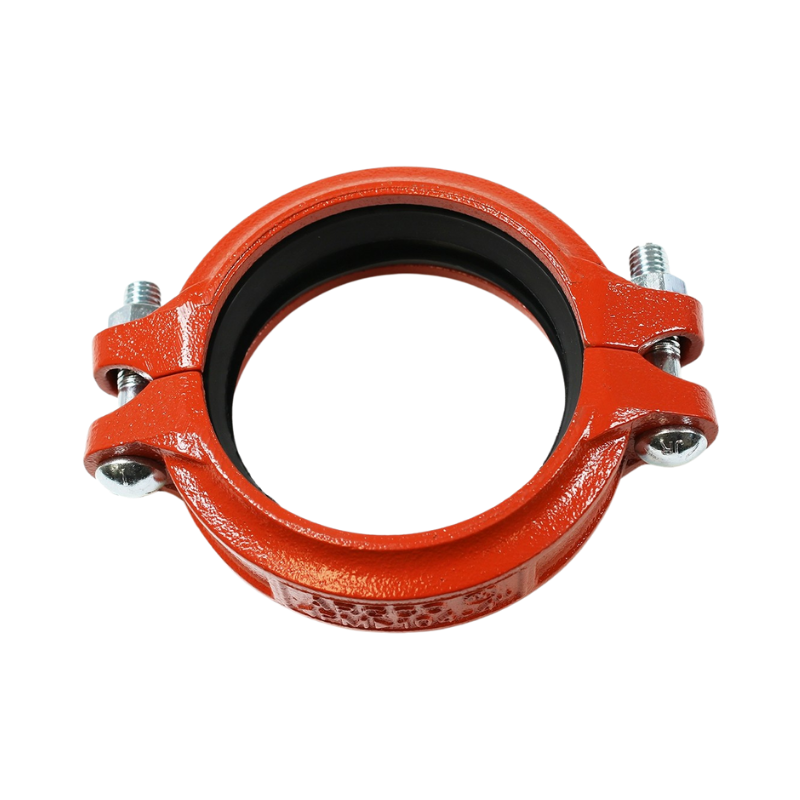

Shield SDG-22 Grooved Coupling 2″
AED 28.35 VAT included
Durable 2″ grooved rigid coupling designed for secure and rigid pipe connections in fire protection systems.
In stock
Product Code : fs0507546
Brand: Shield
Seller: Fireshop1001
Approved by : [woo_pro_badges_extended]
-
free delivery
Above AED1000 in Dubai
-
WARRANTY
For 365 days
-
always authentic
Only Reputed Brands
-
EASY PAYMENT
Multiple payment options
Description
The SHIELD SDG-22 2″ grooved rigid coupling is engineered to provide rigid joints, preventing linear movement of pipe assemblies. Its unique ends-locked design ensures stability, making it ideal for applications requiring rigid installations in fire protection, HVAC, and water systems. Constructed from high-strength ductile iron and featuring an EPDM rubber gasket, it offers reliable performance under high-pressure conditions.
Features
- Provides rigid joints to prevent linear movement of pipe assemblies
- Unique ends-locked design for enhanced stability
- Constructed from high-strength ductile iron for durability
- EPDM rubber gasket ensures leak-tight seal
- Compatible with standard 2" grooved pipe systems
- Suitable for fire protection, HVAC, and water systems
- Corrosion-resistant finish options: red painted or hot-dipped galvanized
- Easy installation with standard tools
- UL Listed, FM Approved, and LPCB Certified
- Designed to withstand high-pressure applications up to 500 PSI
Specifications
- Nominal Size: 2" (60.3 mm)
- Maximum Working Pressure: 500 PSI
- Material: Ductile Iron (ASTM A536 Grade 65-45-12)
- Finish: Red Painted or Hot Dipped Galvanized
- Gasket: EPDM Rubber C-Shaped Gasket (ASTM D2000-1, Grade A)
- Bolt/Nut Size: 2 × 3/8" x 55 mm
- Dimensions: X = 86 mm, Y = 132.5 mm, Z = 46.5 mm
- Approvals: UL Listed, FM Approved, LPCB Certified
- Applications: Fire Protection, HVAC, Water Systems
- Operating Temperature Range: Not specified
