SHIELD SD1030 Pendent Quick Response Fire Sprinkler 68°C, Chrome Finish
AED 28.35 VAT included
Pendent quick response fire sprinkler head rated at 68°C, featuring a chrome finish, designed for efficient fire suppression in commercial and industrial settings.
In stock
-
free delivery
Above AED1000 in Dubai
-
WARRANTY
For 365 days
-
always authentic
Only Reputed Brands
-
EASY PAYMENT
Multiple payment options
Description

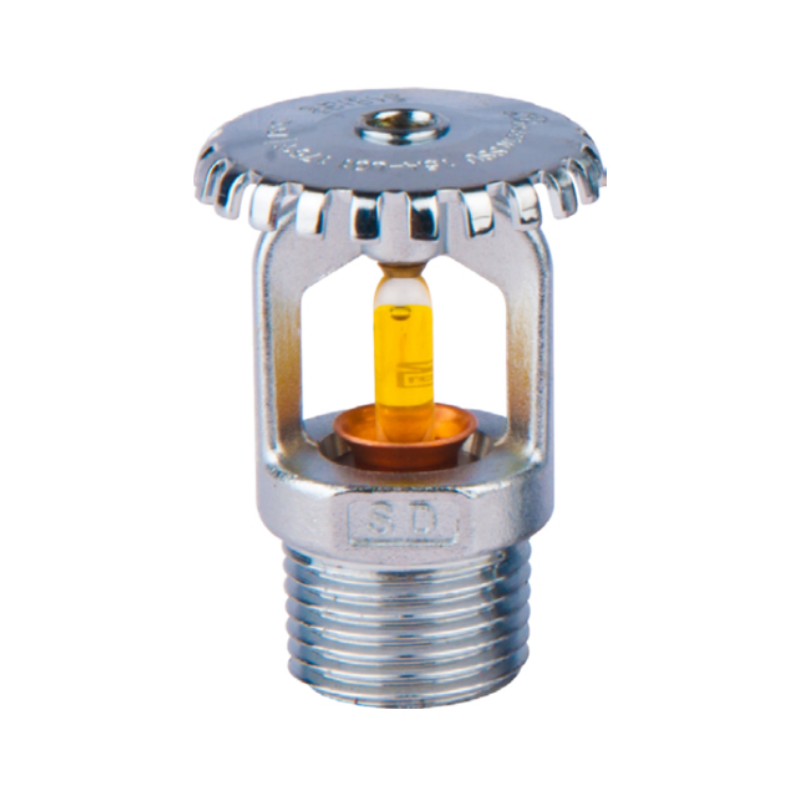

The SHIELD SD1030 is a pendent, quick response fire sprinkler head featuring a 3mm frangible glass bulb that activates at 68°C (155°F). Designed for prompt and precise operation, it ensures effective fire suppression in various environments. The sprinkler incorporates a streamlined die-cast frame with a hex-shaped wrench boss for easy installation. It is suitable for light and ordinary hazard applications, adhering to NFPA 13 standards.
Features
- Quick response activation with 3mm frangible glass bulb
- Pendent orientation suitable for concealed piping systems
- Rated at 68°C (155°F) for prompt fire detection
- Die-cast frame with hex-shaped wrench boss for easy installation
- Compatible with 1/2" NPT threading
- K-Factor of 5.6 (80 lpm/bar½) ensuring optimal water discharge
- Suitable for light and ordinary hazard applications as per NFPA 13
- Maximum working pressure of 175 PSI (1200 kPa)
- Factory hydrostatic tested at 500 PSI (3450 kPa)
- Chrome finish for enhanced corrosion resistance and aesthetic appeal
Specifications
- Orientation: Pendent
- Response Type: Quick Response
- Temperature Rating: 68°C (155°F)
- K-Factor: 5.6 (80 lpm/bar½)
- Thread Size: 1/2" NPT (15mm)
- Orifice Size: 13mm
- Maximum Working Pressure: 175 PSI (1200 kPa)
- Factory Hydrostatic Test: 500 PSI (3450 kPa)
- Material: Brass
- Finish: Chrome
