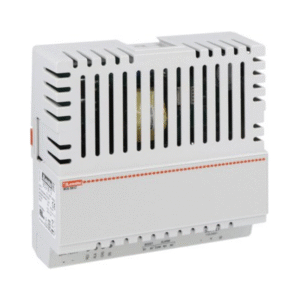

LOVATO Battery Charger 12V 12AH
AED 1,115.63 VAT included
Next product
CLA-VAL Bronze Pressure Relief Valve 3/4" 55L-60 (100-300PSI)
AED 2,493.75 VAT included
SHIELD Grooved Butterfly Valve 6″ SDBV-G300
AED 984.38 VAT included
6″ lug-type grooved butterfly valve with 300 PSI rating, lever handle, and EPDM seat. FM/UL approved for fire protection systems.
In stock
Product Code : fs0507624
Brand: Shield
Seller: Fireshop1001
Approved by : [woo_pro_badges_extended]
-
free delivery
Above AED1000 in Dubai
-
WARRANTY
For 365 days
-
always authentic
Only Reputed Brands
-
EASY PAYMENT
Multiple payment options
Description
The SHIELD SDBV-G300 6″ butterfly valve features ductile iron body with epoxy coating, stainless steel disc, and grooved ends for easy installation. Rated for 300 PSI working pressure with bubble-tight shutoff. Suitable for fire sprinkler, standpipe, and water supply systems.
Features
- 300 PSI working pressure
- Stainless steel disc (316 SS)
- EPDM seat (fire-rated)
- Lever handle with position indicator
- FM/UL approved
- Epoxy-coated ductile iron body
- Gasket: EPDM/FKM optional
- Bubble-tight shutoff
- Quarter-turn operation
Specifications
- Size: 6" (DN150)
- Connection: Grooved ends
- Pressure Rating: 300 PSI (20.7 bar)
- Temperature Range: -20°F to 250°F (-29°C to 121°C)
- Flow Coefficient (Cv): 1950
- Body Material: 65-45-12 Ductile Iron
- Disc Material: SS316
- Seat Material: EPDM (standard)
- Standards: UL 1091, FM 1310
- Weight: 28 lbs (12.7 kg)
