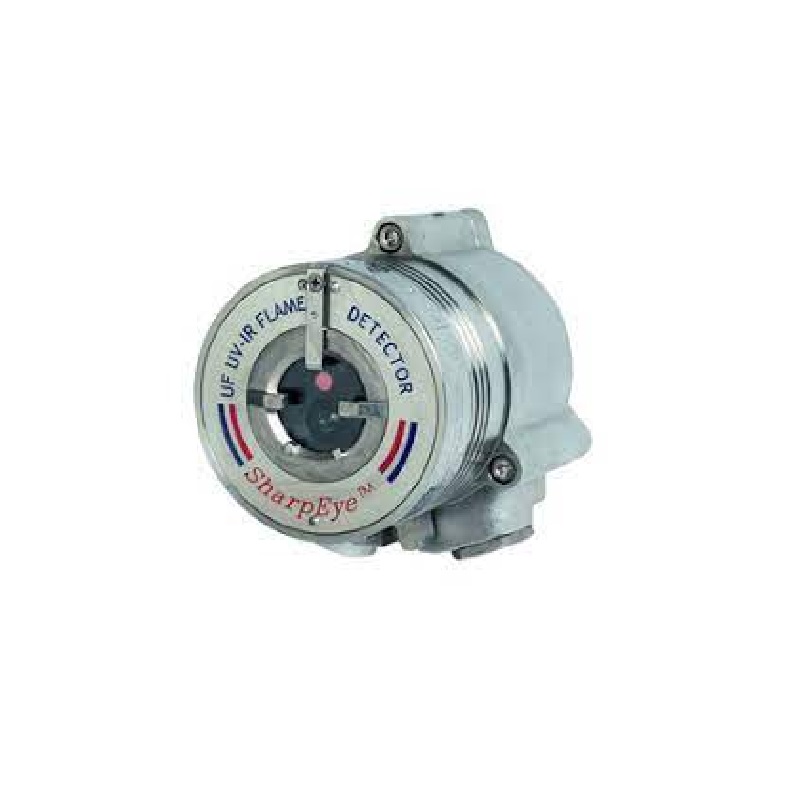

Sharpeye 40/40L4B-211AC (UV/IR) Flame Detector

Name: Sharpeye 40/40L4B-211AC (UV/IR) Flame Detector
SKU: fs05022564
Availability: InStock

AED 14,700.00 VAT included

Compare

Product Code : fs05022564 Seller: Approved by : [woo_pro_badges_extended]

free delivery

Above AED1000 in Dubai
WARRANTY

For 365 days
always authentic

Only Reputed Brands
EASY PAYMENT

Multiple payment options

Description

Sharpeye 40/40L4B-211AC (UV/IR) Flame Detector provides a combination of UV and IR sensors, where the IR sensor operates at a wavelength of 4.5 μm, and can detect hydrocarbon-based fuel and gas fires. The UV/IR flame detector senses radiant energy in the short wave section of both the ultraviolet and infrared portions of the electromagnetic spectrum. The signals from both sensors are analyzed for frequency, intensity and duration. Simultaneous detection of radiant energy in both the UV and IR sensors triggers an alarm signal. The UV sensor incorporates a special logic circuit that helps prevent false alarms caused by solar radiation. Due to increased reliability, the 40/40 Series warranty period has been extended to 5 years and is SIL2 (TUV) approved to IEC 61508.

Features

Automatic Built-In-Test (BIT) and Manual - to assure continued reliable operation (in 40/40L4B only)
Heated window - for operation in harsh weather conditions (snow, ice, condensation)
Approved to Safety Integrity Level 2 (SIL2 – TUV) Model 40/40L4B only
Multiple output options for maximum flexibility and compatibility
High Reliability - MTBF - minimum 150,000 hours
User Programmable via HART or RS-485
3rd party Performance Approved
UV/IR Dual-Sensor
5-Year Warranty
Marine Approval
