Ravel RE-104 Conventional Fire Alarm Panel System, 4 - Zones

Click to enlarge

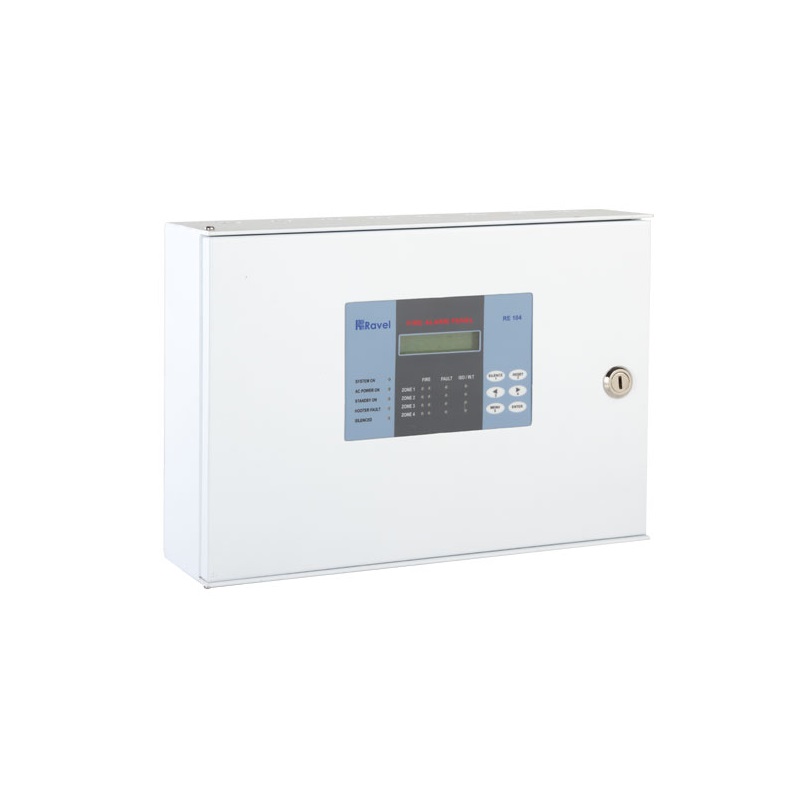

Ravel RE-104 Conventional Fire Alarm Panel System, 4 – Zones

AED 735.00 VAT included

Product Code : fs05022670 Seller: Approved by : [woo_pro_badges_extended]

free delivery

Above AED1000 in Dubai
WARRANTY

For 365 days
always authentic

Only Reputed Brands
EASY PAYMENT

Multiple payment options

Description

Ravel RE-104 Conventional Fire Alarm Panel System, 4 – Zones is a standalone system, with 16 X 2 LCD character, 4 zones detection circuit,3 common potential free contacts & a common NAC sounder output, wall/ceiling mounted, Switch mode power supply- SMPS & Battery polarity & Deep discharge protection. RE-104 fire alarm control panel is designed with a unique protocol to be used for small commercial buildings and small-scale industries. The system is user-friendly with includes all standards to ensure ease of use and high reliability.

Features

Fire / Fault status in unambiguous colored LED indication.
Zone wise Isolation facility with loop voltage cut off
Optional Zone Wise Sounder / Zone Wise Contact
Ravel Indian Manufacturer, International standard
Compatible to all type of Conventional Detectors
Standby battery backup with built in charging
Battery polarity & deep discharge protection
Standby battery backup with built in charging
Tactile Keypad for easy panel operation
Modular Construction, Serviceable

Specifications

Product: 4 Zones Conventional Fire Alarm Panel
Brand: Ravel
Model: RE-104
Primary Power: 120 – 220VAC , 50 Hz
Standby Power: 24V D.C (2 Nos of 12v, 7Ah Sealed Lead acid battery)
Operating Nominal Voltage: 24VDC
Current for NACs: 0.6 Amp
Dimensions: (350W X 250H X 100D)
IP Rating: IP50
