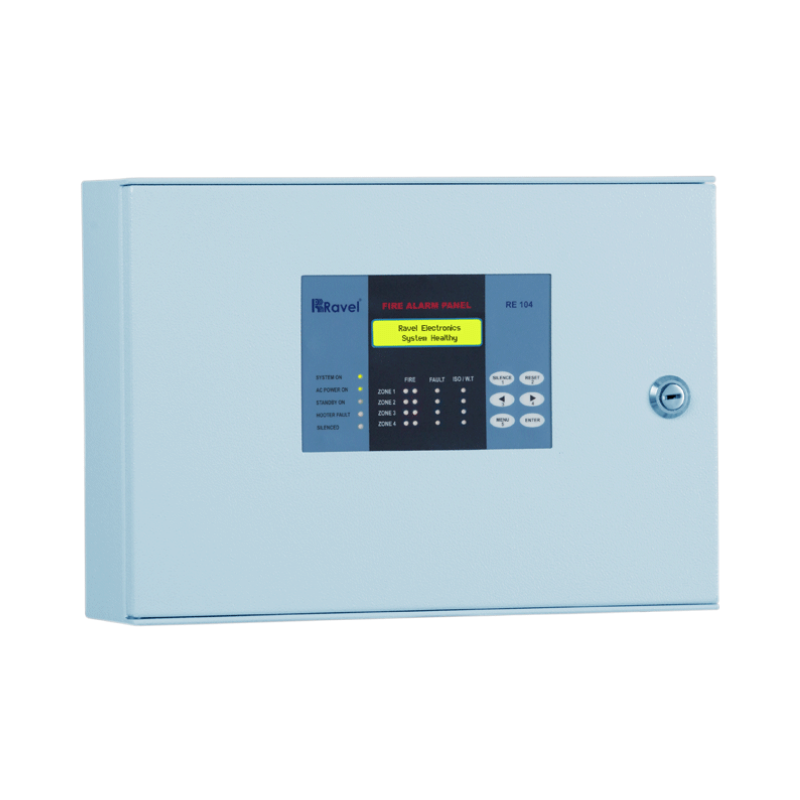

RAVEL Fire Alarm Control Panel (4 Zone)
AED 546.00 VAT included
4-zone conventional fire alarm panel with 3.5″ color display, 3A PSU, and EN54-2/4 certification. Supports up to 100 devices per zone.
In stock
Product Code : fs0507633
Brand: Ravel
Seller: Fireshop1001
Approved by : [woo_pro_badges_extended]
-
free delivery
Above AED1000 in Dubai
-
WARRANTY
For 365 days
-
always authentic
Only Reputed Brands
-
EASY PAYMENT
Multiple payment options
Description
The RAVEL 4-zone conventional fire alarm panel features intuitive touch controls, real-time clock, and built-in event logger (10,000 events). Includes 2 sounder circuits (2A each), 7Ah battery backup, and supports all standard conventional detectors and modules. Complies with EN54-2/4 standards.
Features
- 4 fully programmable zones
- 100 devices per zone (max)
- 3A power supply output
- 3.5" color TFT display
- Dual 7Ah batteries (included)
- 2 sounder circuits (2A each)
- EN54-2/4 certified
- Built-in RS-485 for networking
- 10,000 event log with USB export
Specifications
- Input Voltage: 220-240V AC 50/60Hz
- Battery: 2× 7Ah SLA (included)
- Zones: 4 (Class B wiring)
- Max Devices: 400 total (100/zone)
- Sounder Circuits: 2 (2A each)
- Event Log: 10,000 events
- Communication: RS-485 (MODBUS RTU)
- Enclosure: Steel IP42
- Dimensions: 440×320×120mm
- Standards: EN54-2/4, VdS, UL 864
