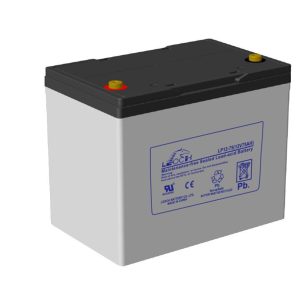

Loech LP12-75 (12V 75Ah) Sealed Lead Acid Battery AED 477.75 VAT included

Next product

Rapidrop FIG 404 Automatic Fire Hose Reel AED 614.25 VAT included

Click to enlarge

Rapidrop Supervisory Switch ( Model RD-OSY2) / Pressure Switch ( Model RDPS10)

Name: Rapidrop Supervisory Switch ( Model RD-OSY2) / Pressure Switch ( Model RDPS10)
SKU: fs0506995
Availability: InStock

AED 472.50 VAT included

Compare

Product Code : fs0506995 Seller: Approved by : [woo_pro_badges_extended]

free delivery

Above AED1000 in Dubai
WARRANTY

For 365 days
always authentic

Only Reputed Brands
EASY PAYMENT

Multiple payment options

Description

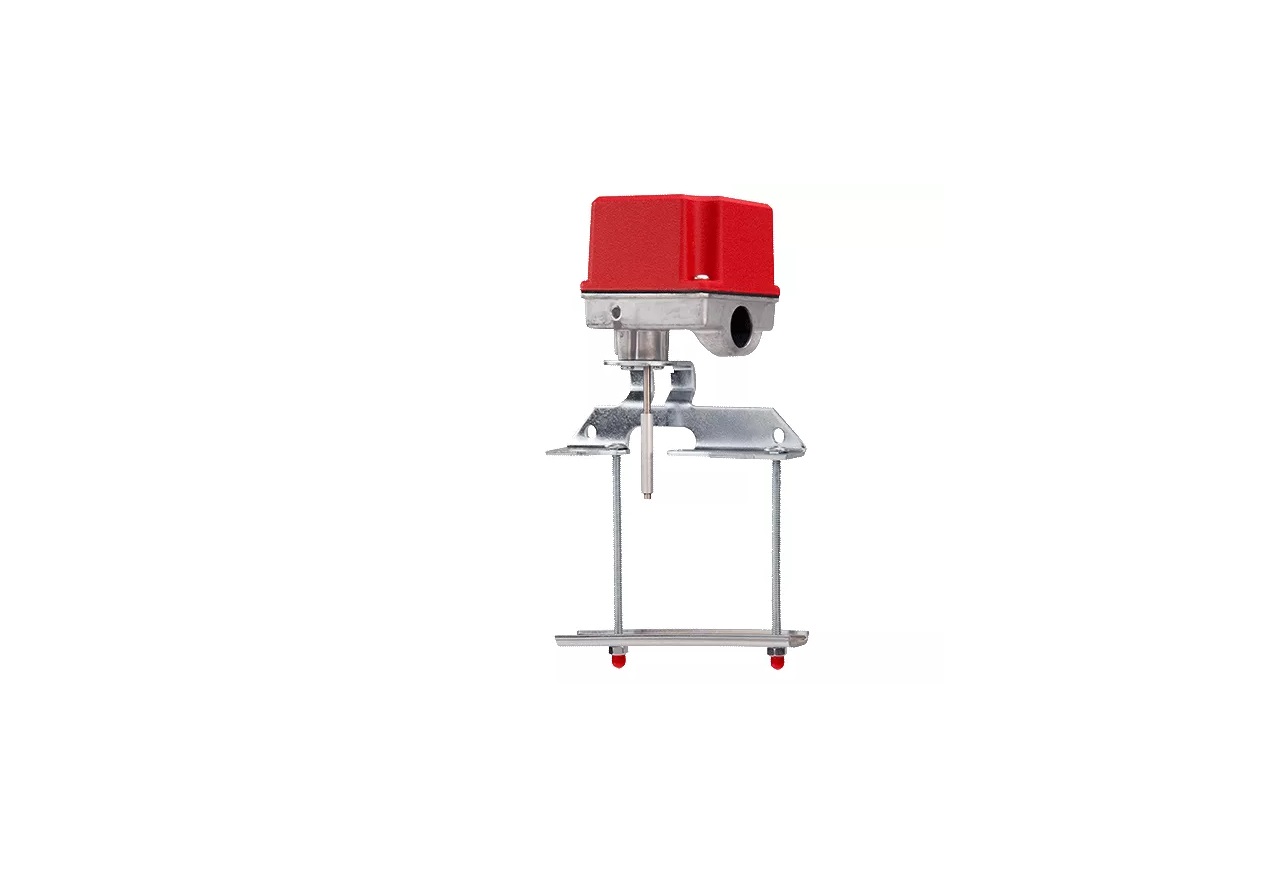

Rapidrop Supervisory Switch (Model RD-OSY2) is a specialized device designed to monitor the open and closed position of an outside screw and yoke (OS&Y) valve. This robust and reliable switch is essential for ensuring the proper operation of fire protection systems, providing immediate alerts in the event of unauthorized or accidental valve closure. Ideal for use in commercial and industrial fire protection systems, the RD-OSY2 ensures continuous system readiness and compliance with safety standards.

Rapidrop Pressure Switch (Model RDPS10) is a high-quality device designed to monitor system pressure in fire protection systems. This pressure switch provides reliable performance in detecting changes in system pressure, triggering alerts or system responses when preset pressure thresholds are reached. The RDPS10 is essential for ensuring the integrity and responsiveness of fire protection systems in various commercial and industrial applications.

Features

Reliable Monitoring: Accurately detects and signals changes in valve position, ensuring immediate response to unauthorized or accidental closures
Weatherproof Enclosure: IP65 rated for protection against dust and water ingress, suitable for indoor and outdoor use
Durable Construction: Built to withstand harsh environments, ensuring long-term reliability and performance
UL Listed and FM Approved: Meets rigorous safety and performance standards for fire protection equipment
Easy Installation: Designed for quick and straightforward installation on a variety of OS&Y valves
Tamper-Resistant: Tamper-proof design to prevent unauthorized adjustments or disconnections
Multiple Conduit Entries: Allows flexible wiring configurations to suit various installation needs
Adjustable: Easily adjustable to fit different valve sizes and types

Specifications

Product: Supervisory Switch/Pressure Switch
Brand: Rapidrop
Model: RD-OSY2/RDPS10
Mounting: Fits valves with stem diameters from 1/2" to 2-1/2" (12.7mm to 63.5mm)
Switch Rating: SPDT, 10A @ 125/250V AC
Enclosure: IP65, weatherproof
Operating Temperature: -40°F to 140°F (-40°C to 60°C)
Dimensions: 6.5" x 3.5" x 2.5" (165mm x 89mm x 64mm)
Weight: 2 lbs (0.9 kg)
