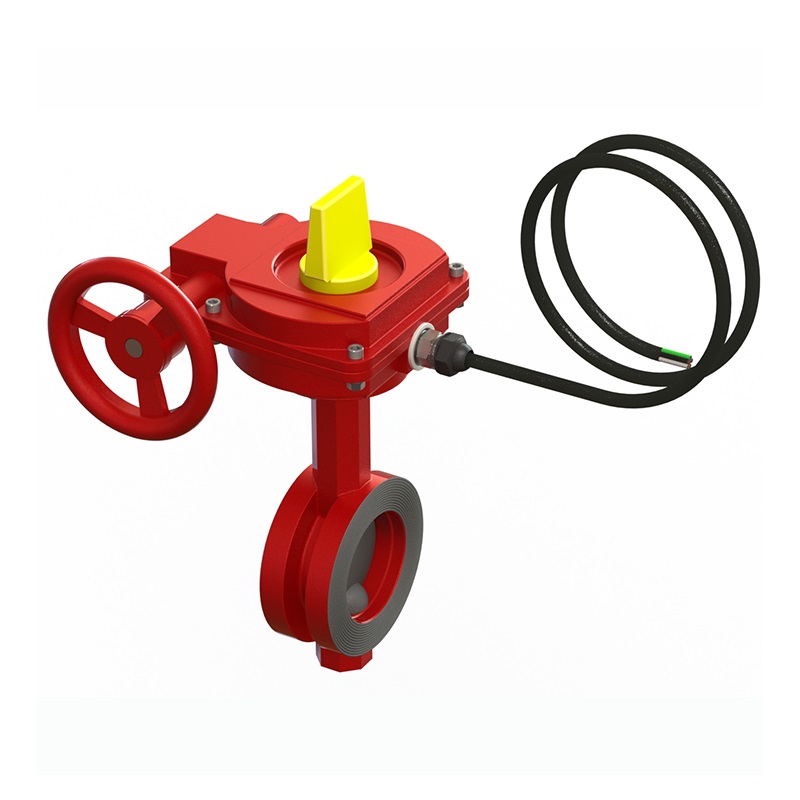

Rapidrop HRW 3 Inch Butterfly valve

Name: Rapidrop HRW 3 Inch Butterfly valve
SKU: fs0504065
Availability: InStock

See all products from rapidrop

AED 630.00 VAT included

Compare

Product Code : fs0504065 Brand: Rapidrop Seller: Approved by : [woo_pro_badges_extended]

free delivery

Above AED1000 in Dubai
WARRANTY

For 365 days
always authentic

Only Reputed Brands
EASY PAYMENT

Multiple payment options

Description

Rapidrop HRW 3 Inch Butterfly valve is a rotary type valve with a visual indication of whether the valve is in a fully open position or not. Butterfly valves are commonly used in fire protection systems as system control valves, and sectional or pump water control valves. These valves have been designed with minimum flow restriction and pressure loss when in the fully open position.

Features

To reduce the risk of a water hammer Rapidrop Butterfly Valves are provided with a slow close hand wheel operated gearbox.
These valves have been designed with minimum flow restriction and pressure loss when in a fully open position.
Gated butterfly valve with double tamper switch for indoor and outdoor use.

Specifications

Product: High Pressure Wafer Butterfly Valve
Brand: Rapidrop
Model: HRW
SIZE RANGE: 3 Inch
BODY TYPE: Grooved
WORKING PRESSURE: 20.7 bar (300 psi) FM, 20.7 bar (300 psi) UL, 16.0 bar (232 psi) VdS
BODY MATERIAL: Ductile Iron
SHAFT MATERIAL: Stainless steel
APPROVALS: FM Approved, UL listed, VdS, Gost
Weight: 9.5Kg
