Potter RA-4410RC Remote Annunciator
See all products from potterAED 1,596.00 VAT included

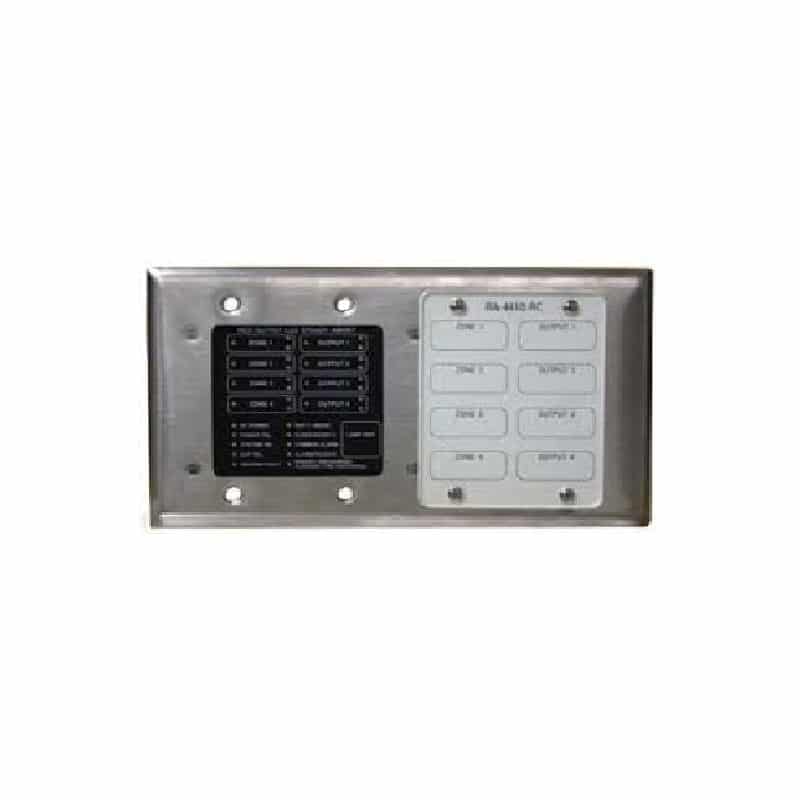

The RA-4410RC remote annunciator is designed to operate with the PFC-4410RC releasing control panel. The unit mounts to a 4 gang box. There are 34 LED’s to indicate a change in panel status. There is a buzzer on the annunciator that sounds for any trouble or supervisory condition. Pressing the LAMP TEST button illuminates all of the lamps.
Out of stock
-
free delivery
Above AED1000 in Dubai
-
WARRANTY
For 365 days
-
always authentic
Only Reputed Brands
-
EASY PAYMENT
Multiple payment options
Description
The RA-4410RC remote annunciator is designed to operate with the PFC-4410RC releasing control panel. The unit mounts to a 4 gang box. There are 34 LED’s to indicate a change in panel status. There is a buzzer on the annunciator that sounds for any trouble or supervisory condition. Pressing the LAMP TEST button illuminates all of the lamps.
The release panel supervises and communicates with the annunciator via separate connections for the RS-485 communication and the 24VDC power requirements of the RA-4410RC. Separate cables should be used for power and communication. The shielded cable must be used for the communication line.
Up to four annunciators can be connected to one panel. A Rotary switch is provided on the panel to indicate how many annunciators are connected. Another rotary switch is on the annunciator to set the address. The annunciators must be addressed consecutively.
Features
- Up to 4 annunciators can be connected to one PFC-4410RC
- Rotary switches on panel and annunciator for supervisory purposes
- Trouble/Supervisory buzzer
- Separate LED's for Alarm and Trouble per zone, Outputs activated or in trouble, Supervisory, Abort, Supervisory trouble, Power trouble, System trouble, Alarm silence, Ground fault, Discharging/Discharged
- Lamp test silence switch
- Slide in Zone and Output identification labels
Specifications
- Brand: Potter
- Dimensions: 8-1/4? W x 4-1/2? H x 1? D (Approximate)
- Enclosure: Stainless steel plate with a clear plastic shield protecting zone and output identification labels. Mounts in 4 gang box.
- Environmental Specifications: Indoor use only, Temperature range 32°F to 120°F (0°C to 49°C), 93% Humidity
- Electrical Requirements: 24VDC 10 mA standby/ 13 mA alarm / 26 mA max. (lamp test), RS-485 Communication: (Two-wire Shielded cable required), Ground drain wire to S terminal on PFC-4410RC only, Max. Distance: 2000 ft. using 22 ga. wire and 4000 ft. using 20 ga. wire
