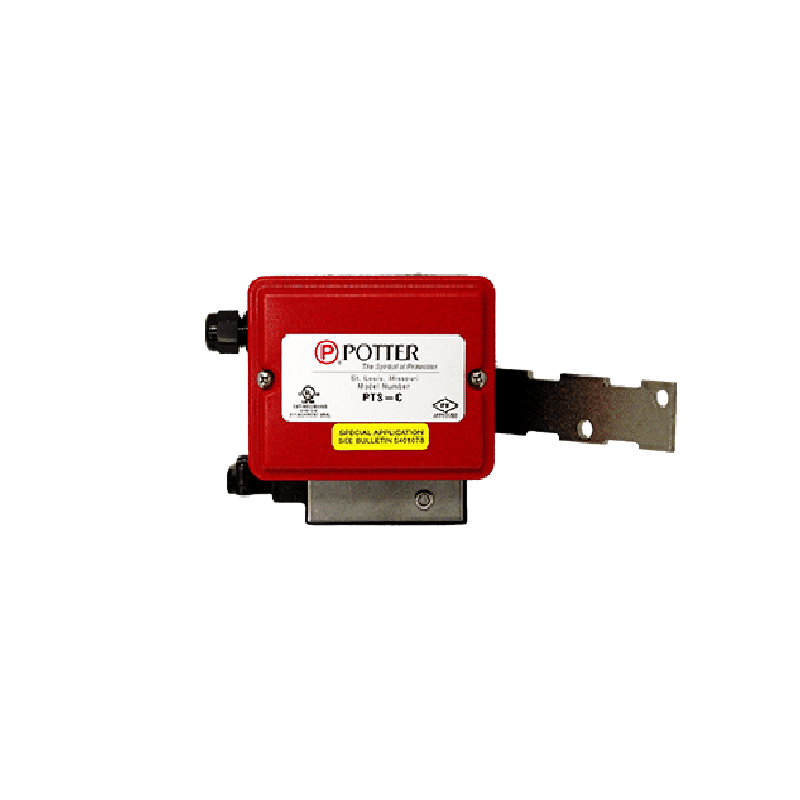

Potter PTS-C Plug Type Supervisory Switch
See all products from potterAED 577.50 VAT included
Potter PTS-C is designed to supervise sprinkler system control valves and may also be used to secure gates and other applications. This unit is particularly useful for unusual conditions, such as non-rising stem valves. Nema 6P enclosure allows the device to be mounted outdoors, even in areas subject to fl ooding such as pits and wells. Sealed reed switch operation virtually eliminates contact corrosion.
-
free delivery
Above AED1000 in Dubai
-
WARRANTY
For 365 days
-
always authentic
Only Reputed Brands
-
EASY PAYMENT
Multiple payment options
Description
Potter PTS-C is designed to supervise sprinkler system control valves and may also be used to secure gates and other applications. This unit is particularly useful for unusual conditions, such as non-rising stem valves. Nema 6P enclosure allows the device to be mounted outdoors, even in areas subject to fl ooding such as pits and wells. Sealed reed switch operation virtually eliminates contact corrosion. Turning the valve wheel will pull the plug out of the receptacle. The plug cannot be reinserted after operation until the plug receptacle cover is removed with the special hex key provided. This key should be left with the building owner or responsible party. Replacement or additional cover tamper screws and hex keys are available
Features
- Dimensions: 7" L x 3.75 W x 3" D (including bracket) (17,7 cm x 9,5 cm x 7,6 cm)
- Enclosure: Non-Corrosive Composite Material
- Environmental Limitations: NEMA 4 and NEMA 6P rated enclosure when proper electrical fi ttings are used. (IP67)
- Temperature range: Â40° F to 140° F (Â40° C to 60° C)
- Housing Cover Tamper: Activated by housing cover removal
- Contact Ratings: SPDT Plug Contacts: 100 mA at 28 VDC/AC 250 mA at 12 VDC/AC
- Cable: 2-wire, 18 Ga. Waterproof - Approx. 8' (2,43m) long
- UL and CUL Listed, FM Approved, CSFM Listed, NYMEA Accepted
- Weight: 13.6 oz. (385,5 g.)
Specifications
- Product: Plug Type Supervisory Switch
- Brand: Potter
- Dimensions: 7" L x 3.75 W x 3" D (including bracket) (17,7 cm x 9,5 cm x 7,6 cm)
- Enclosure: Non-Corrosive Composite Material
- Housing Cover Tamper: Activated by housing cover removal
- Cable: 2-wire, 18 Ga. Waterproof - Approx. 8' (2,43m) long
- Environmental Limitations: NEMA 4 and NEMA 6P rated enclosure when proper electrical fi ttings are used. (IP67)
- Temperature range: Â40° F to 140° F (Â40° C to 60° C)
- Contact Ratings: SPDT Plug Contacts: 100 mA at 28 VDC/AC 250 mA at 12 VDC/AC
- UL and CUL Listed, FM Approved, CSFM Listed, NYMEA Accepted
- Weight: 13.6 oz. (385,5 g.)
