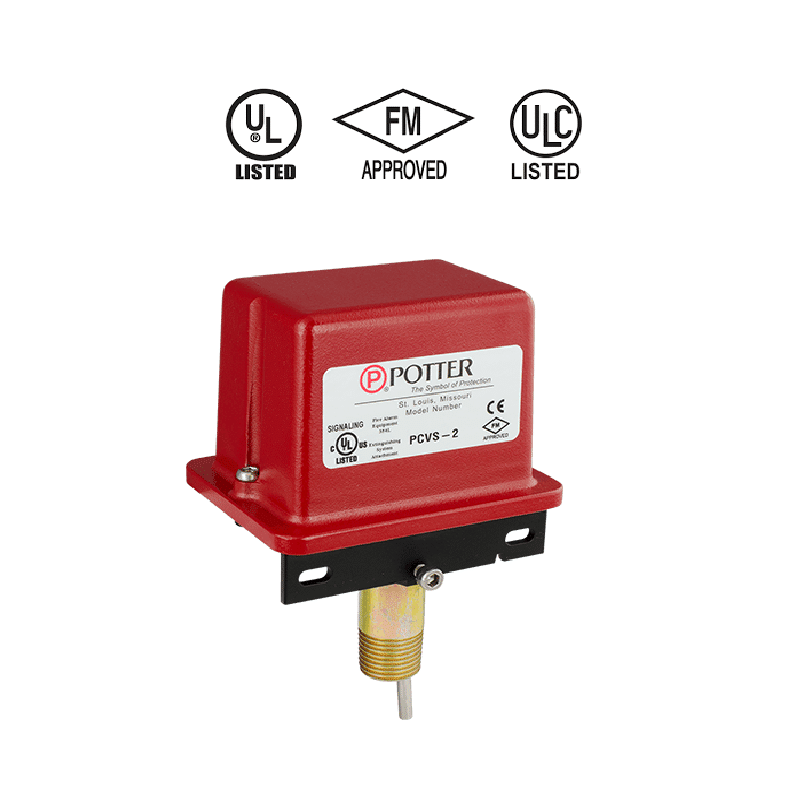

Potter PCVS Series Control Valve Supervisory Switch
See all products from potterAED 393.75 VAT included
Potter PCVS is a weather proof and tamper resistant switch for monitoring the open position of fire sprinkler control valves of the wall and yard post indicator and butterfly types. Two SPDT (Form C) contacts are provided which will operate when the valve position is altered from an open state. The unit mounts in a 1/2” NPT tapped hole in the post indicator or butterfly valve housing.
-
free delivery
Above AED1000 in Dubai
-
WARRANTY
For 365 days
-
always authentic
Only Reputed Brands
-
EASY PAYMENT
Multiple payment options
Description
Potter PCVS is a weather proof and tamper resistant switch for monitoring the open position of fire sprinkler control valves of the wall and yard post indicator and butterfly types. Two SPDT (Form C) contacts are provided which will operate when the valve position is altered from an open state. The unit mounts in a 1/2” NPT tapped hole in the post indicator or butterfly valve housing. The device is engaged by the indicating assembly of the post indicator or the operating mechanism of the butterfly valve, actuating switches when the valve is fully open. The unit should be installed where it is accessible for service. The cover is held in place by two tamper resistant screws that require a special tool to remove. The tool is furnished with each device.
Features
- NEMA 4X (IP 65) and 6P (IP 67) Enclosure is 4X. For additional corrosion protection of mounting hardware, use model OSYSU-2 CRH
- Switch detects tampering and valve closure
- -40º to 140º (-40ºC to 60ºC) operating temperature range
- Accomodates up to 12AWG wire
- Adjustable length trip rod
- Visual Switch Indicators
- Two conduit entrances
- Two SPDT contacts
- RoHS compliant
Specifications
- Product: Control Valve Supervisory Switch
- Brand: Potter
- Enclosure: Cover- Die Cast, Finish: Red Powder Coat, Base- Die Cast, Finish- Black Powder Coat All parts have corrosion resistant finishes
- Cover Tamper: Tamper Resistant Screws Optional Cover Tamper Switch Available
- Contact Ratings: OSYSU-1: One Set of SPDT (Form C), OSYSU-2: Two Sets of SPDT (Form C), 10.0 Amps at 125/250 VAC, 2.0 Amps at 30VDC Resistive, 10 mAmps minimum at 24 VDC
- Environmental Limitations: -40º F to 140ºF (-40ºC to 60ºC) NEMA 4X (IP 65) and NEMA 6P (IP 67) Enclosure (Use suitably rated conduit and connector) Indoor or Outdoor Use (See OSYSU-EX Bulletin 5400705 for Hazardous locations)
- Conduit Entrances: Two Knockouts for 1/2” conduit provided (See Notice on Page 6 and Fig. 9 on Page 5)
- Service: Use NFPA 13, 13D, 13R, 72
- Weight: 1.0 lbs (0,45 kg)
