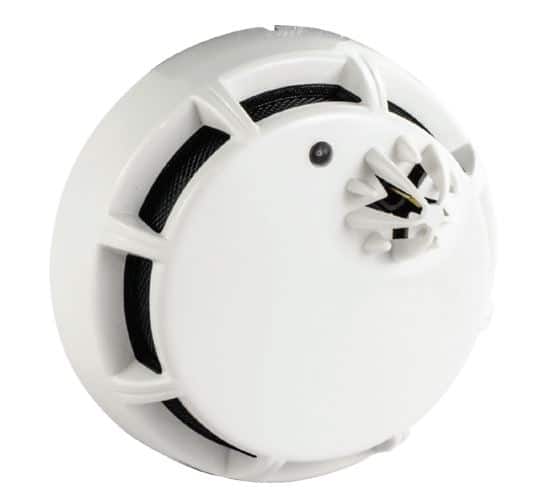

Potter PAD100-PHD Addressable Photoelectric Smoke/Heat Detector Combination, UL Listed
See all products from potterOriginal price was: AED 577.50.AED 525.00Current price is: AED 525.00. VAT included
Potter PAD100-PHD is a listed Analog Addressable smoke sensor and a rate of rise and/or fixed temperature heat sensor compatible with fire alarm control panels that utilize the Potter Addressable Device (PAD) protocol. The PAD100-PHD is a low profile smoke/heat sensor with a wide sensitivity range. The heat sensing portion utilizes a proven thermistor for accurate and reliable heat detection. The sensor and base (not included) are made of a durable plastic in an off-white color to blend in with the ceiling.
-
free delivery
Above AED1000 in Dubai
-
WARRANTY
For 365 days
-
always authentic
Only Reputed Brands
-
EASY PAYMENT
Multiple payment options
Description
The PAD100-PHD is a listed Analog Addressable smoke sensor and a rate of rise and/or fixed temperature heat sensor compatible with fire alarm control panels that utilize the Potter Addressable Device (PAD) protocol. The PAD100-PHD is a low profile smoke/heat sensor with a wide sensitivity range. The heat sensing portion utilizes a proven thermistor for accurate and reliable heat detection. The sensor and base (not included) are made of a durable plastic in an off-white color to blend in with the ceiling.
The PAD100-PHD is UL listed and has a sensitivity range of 1.0 to 3.5% per foot with a fix temperature alarm threshold of 135°F and can be used for rate of rise applications. See detector spacing limitations below. The PAD100-PHD features drift compensation and has built in dirty detector warning. The PAD100-PHD and the control panel communicate over a proven and robust digital communication path and the system analyzes the information at the particular device. The total polling speed is less than five (5) seconds, well under the UL requirements.
Features
- Selectable Rate of Rise and/or Fixed Heat Detector
- Reliable detection technology
- Wide selectable smoke sensitivity range of 1.0 to 3.5%/foot
- Sensor communicates sensitivity to control panel
- UL listed smoke calibration and sensitivity
- Ambient temperature listing of 32 ° F to 150 ° F
- Optional locking tab to prevent unwanted removal
- Simple DIP switch address setting, no programming tool required
- LED alarm indicator
- UUKL Listed for Smoke Control
Specifications
- Product Type: Analog Addressable smoke sensor
- Operating Voltage 24 VDC
- Detector Current Draw 300 µA
- Alarm indicator 1 LED
- Alarm set-point range for Smoke 1.1% - 3.5%
- Alarm set-point for Heat 135°F
- Dimensions (without base) Height: 1.94 in (49mm) Diameter 3.93 in (100mm)
- Operating relative humidity range 0% to 93% (Non-condensing)
- Start-up time Max. 1 sec
- Maximum number of addresses per loop 127
- Maximum number of lighted indicators in alarm per loop. 30
- Color Eggshell White
- Weight (without base) 3.6 oz
