Potter OSYSU-EX Explosion Proof OSandY Valve Supervisory Switch
See all products from potterAED 3,780.00 VAT included

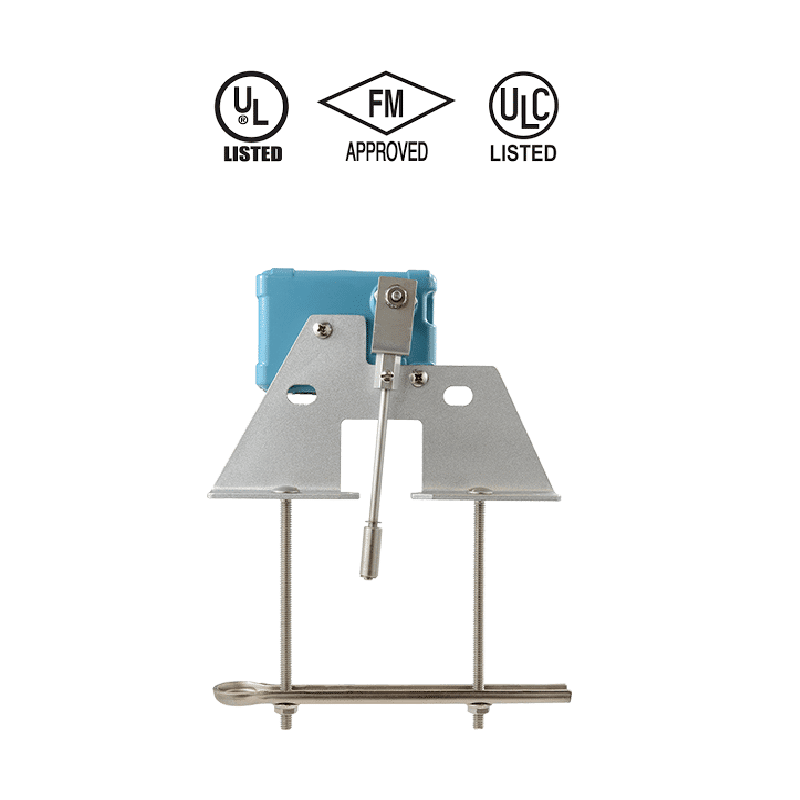

Potter OSYSU-EX is designed to supervise the position of an Outside Screw & Yoke type gate valve in hazardous locations. The device mounts on the valve to monitor the rising stem. When properly mounted, the trip rod will be resting in a groove filed into the valve stem. When the valve stem begins to move, caused by closing the valve, the trip rod will be pushed out of the groove and activate the switch.
-
free delivery
Above AED1000 in Dubai
-
WARRANTY
For 365 days
-
always authentic
Only Reputed Brands
-
EASY PAYMENT
Multiple payment options
Description
Potter OSYSU-EX is designed to supervise the position of an Outside Screw & Yoke type gate valve in hazardous locations. The device mounts on the valve to monitor the rising stem. When properly mounted, the trip rod will be resting in a groove filed into the valve stem. When the valve stem begins to move, caused by closing the valve, the trip rod will be pushed out of the groove and activate the switch. To aid with installation the trip rod length is adjustable. This device features a UL listed explosion proof switch enclosure.
Features
- UL listed explosion proof switch enclosure: UL Listed, File #E14274. CSA Certified , File #LR57324, ATEX/IEC EX Approved, File #KEMA 04ATEX2312X
- For use in hazardous locations: Class I, Div. 1 & 2, Groups C, D Class II, Div. 1 & 2, Groups E, F, G
- Knurled Mounting Bracket prevents slipping
- Adjustable length trip rod
- Ample wiring space
- RoHS Compliant
- NEMA 1, 7, 9
Specifications
- Product: Explosion Proof Outside Screw and Yoke Valve Supervisory Switch
- Brand: Potter
- Conduit Entrances: One 1/2”-14 NPT threaded entrance
- Material: Switch Enclosure - Aluminum, Bracket/Mounting Bar - High Phosphorus, Electroless Nickel Plated Steel, Hardware - Stainless Steel
- Contact Ratings: One set of SPDT 15 Amps at 125VAC .5 Amps at 125VDC Terminals accept up to 14AWG wire
- Environmental Limitations: -40°F to 140°F (-40°C to 60°C) Class I, Div. 1 & 2, Groups C, D Class II, Div. 1 & 2, Groups E, F, G NEMA 1, 7, 9 For outdoor applications use model OSYSU-EX-O
- Service Use: NFPA 13, 13D, 13R, 72
- Weight 2.62 lbs: (0,97 kg)
