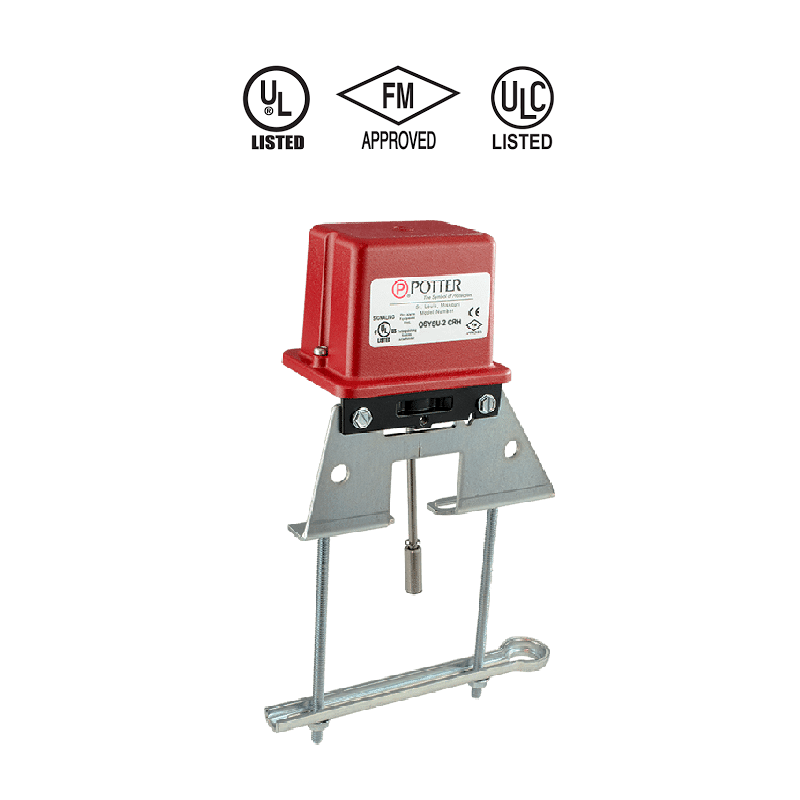

Potter OSYSU-CRH Corrosion Resistant OSandY Valve Supervisory Switch

Name: Potter OSYSU-CRH Corrosion Resistant OSandY Valve Supervisory Switch
SKU: fs10098
Availability: InStock

See all products from potter

AED 441.00 VAT included

Compare

Product Code : fs10098 Brand: Potter Seller: Fireshop1001 Approved by : [woo_pro_badges_extended]

free delivery

Above AED1000 in Dubai
WARRANTY

For 365 days
always authentic

Only Reputed Brands
EASY PAYMENT

Multiple payment options

Description

Potter OSYSU-CRH is used to monitor the open position of an OSandY (outside screw and yoke) type gate valve in corrosive environments. The OSYSU-CRH provides additional corrosion protection on top of the NEMA 4X enclosure with corrosion resistant mounting hardware.
These switches mount conveniently to most OSandY valves ranging in size from 2 Inch to 12 Inch (50mm to 300mm). They will mount on some valves as small as (12.5mm). The cover is held in place by two tamper resistant screws that require a special tool to remove. The tool is furnished with each device.

Features

NEMA 4X (IP 65) and 6P (IP 67) Enclosure is 4X. For additional corrosion protection of mounting hardware, use model OSYSU-2 CRH
Three position switch detects tampering and valve closure
-40º to 140º (-40ºC to 60ºC) operating temperature range
Fine adjustment feature for fast, easy installation
Knurled mounting bracket prevents slipping
One or two SPDT contact models (-1,-2)
Accomodates up to 12AWG wire
Adjustable length trip rod
Visual switch indicators
Two conduit entrances

Specifications

Product: Outside Screw and Yoke Valve Supervisory Switch
Brand: Potter
Enclosure: Cover- Die Cast, Finish: Red Powder Coat, Base- Die Cast, Finish- Black Powder Coat All parts have corrosion resistant finishes
Cover Tamper: Tamper Resistant Screws Optional Cover Tamper Switch Available
Contact Ratings: OSYSU-1: One Set of SPDT (Form C), OSYSU-2: Two Sets of SPDT (Form C), 10.0 Amps at 125/250 VAC, 2.0 Amps at 30VDC Resistive, 10 mAmps minimum at 24 VDC
Environmental Limitations: -40º F to 140ºF (-40ºC to 60ºC) NEMA 4X (IP 65) and NEMA 6P (IP 67) Enclosure (Use suitably rated conduit and connector) Indoor or Outdoor Use (See OSYSU-EX Bulletin 5400705 for Hazardous locations)
Conduit Entrances: Two Knockouts for 1/2 conduit provided (See Notice on Page 6 and Fig. 9 on Page 5)
Service: Use NFPA 13, 13D, 13R, 72
Weight: 1.6 lbs (0,73 kg)
