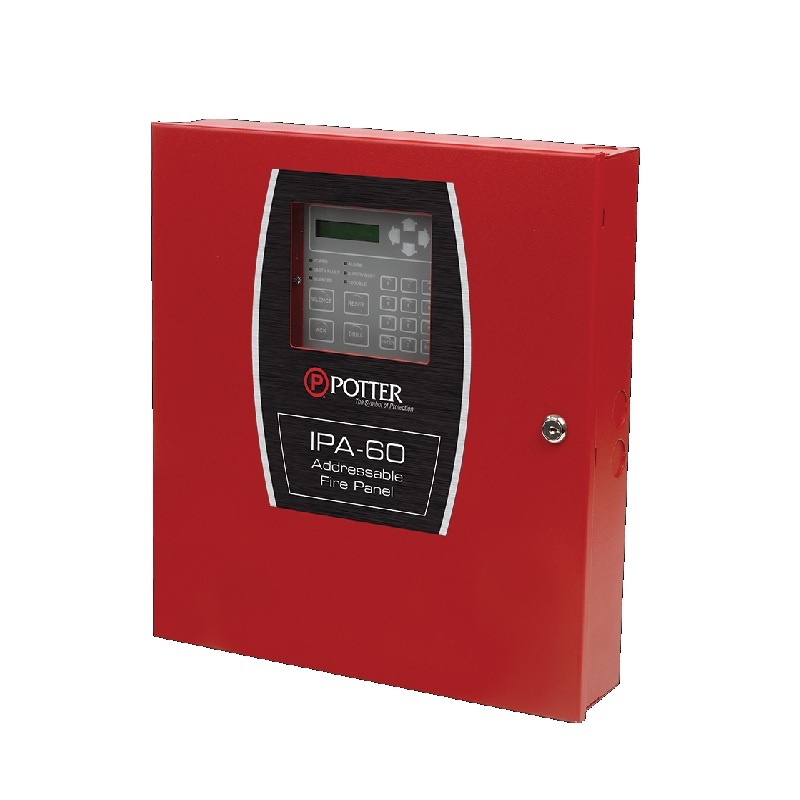

Potter IPA-60 Fire Alarm Control Panel(Programming Charges Extra Applicable)

Name: Potter IPA-60 Fire Alarm Control Panel(Programming Charges Extra Applicable)
SKU: fs0711019
Availability: InStock

AED 4,200.00 VAT included

Compare

Product Code : fs0711019 Seller: Approved by : [woo_pro_badges_extended]

free delivery

Above AED1000 in Dubai
WARRANTY

For 365 days
always authentic

Only Reputed Brands
EASY PAYMENT

Multiple payment options

Description

Potter IPA-60 is an analog/addressable releasing fire alarm system with a total system capacity of 60 addresses. Additional capacity on the system is achieved using multi-point SLC modules. The control panel utilizes the exclusive Potter protocol that includes a complete line of sensors and modules. Each SLC may be comprised of any combination of smoke sensor, heat detectors or modules and allows for a total of 50 ohms of impedance and may use any wire compliant with the National Electrical Code (NEC).

Features

60 addresses available on this analog addressable system
Additional system capacity achieved via multi-point SLC modules
99 software zones
NFPA 72 Compliant Smoke Sensitivity Test Built-In
System Operates as Class A or Class B for SLC, P-Link and NACs
5 Amp Power Supply, Expandable to 310 amps
2 NACS, Regulated, Rated at 3 Amps each, expandable to 188
2 Input/Output (I/O) Circuits for system flexibility rated at 1 Amp each, ideal for manual release and abort
Strobe Synchronization and System Wide Sync for Potter/AMSECO®, Gentex®, Cooper Wheelock® and System Sensor® strobes
Optional two line DACT with UD-1000 that can report General, Zone or Point Information

Specifications

Product: Fire Alarm Control Panel
Brand: Potter
Model: IPA-60
Dimensions: 16”W x 17”H x 3 7/8”D
AC Mains: 3.0 Amps @ 120 VAC 50/60 HZ, 2.0 Amps @ 240 VAC 50/60 HZ
Enclosure: 16 gauge cold rolled steel with removable locked door with Lexan viewing window
Battery: Standby Current-130 mA Alarm Current-200 mA
Temperature and Humidity Range: 32° to 120° (0°C to 49°C) with a maximum humidity of 93% non-condensing.
Standards: NFPA 12, 12A, 13, 15, 16, 17, 17A, 70, 72, 750, and 2001
