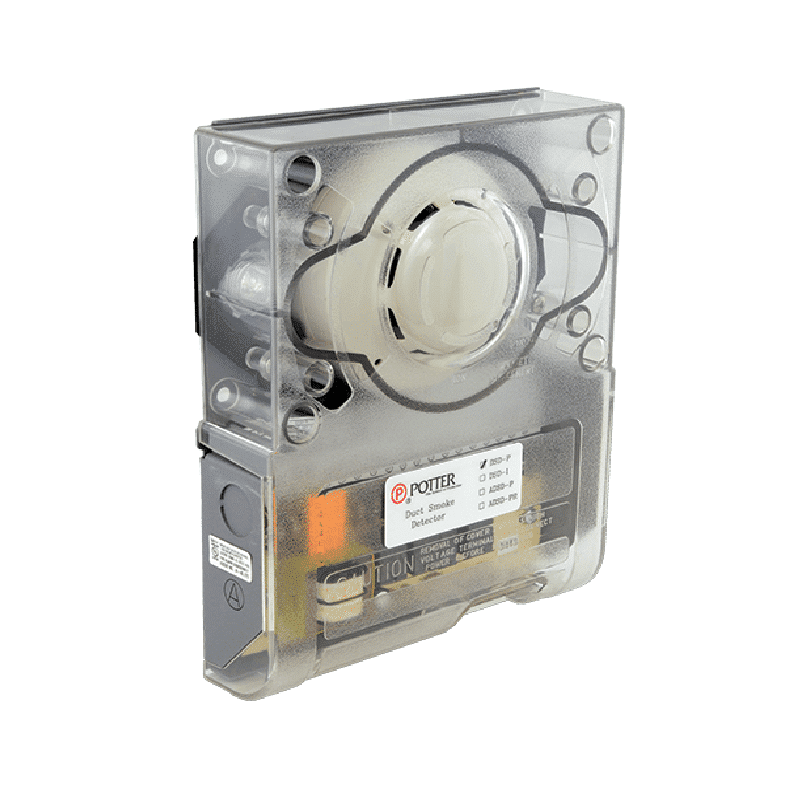

Potter DSD-P Conventional Duct Detector

Name: Potter DSD-P Conventional Duct Detector
SKU: fs10799
Availability: OutOfStock

See all products from potter

AED 588.00 VAT included

Out of stock

Compare

Product Code : fs10799 Brand: Potter Seller: Fireshop1001 Approved by : [woo_pro_badges_extended]

free delivery

Above AED1000 in Dubai
WARRANTY

For 365 days
always authentic

Only Reputed Brands
EASY PAYMENT

Multiple payment options

Description

Potter Electric DSD-P is designed and built to meet all local requirements, as well as the NFPA regulations regarding duct smoke detectors. Output terminals are provided for remote accessories such as a horn, strobe, remote status indicators and reset key switches or push buttons.
DSD-P duct smoke detector provides early detection of smoke and products of combustion present in air moving through HVAC ducts in commercial, industrial and residential applications. The DSD is designed to prevent the recirculation of smoke in areas by the air handling systems, fans, and blowers. Complete systems may be shut down in the event of smoke detection. The DSD-P operates on 115 VAC, 24 VAC, and 24 VDC.

Features

Detect and limit the spread of smoke throughout building HVAC ducts
Compatible with building automation and fire alarm system
Installs quickly and easily - Duct Housing Cover does not need to be removed before installation to duct
Interchangeable Plug-In photoelectric or ionization heads
No screens or filters to clean
Cover provides magnet window and placement guide for go/no-go operational testing with out disassembly
Rugged gray steel back box with clear cover
Accessories - Remote power, remote alarm indication capability and remote, horn/piezo capability
Meets UL 268A Requirements

Specifications

Product: Explosion proof Heat Detector
Brand: Potter
Model: Potter DSD-P
Operating Voltage: 115V AC, 24V C/DC
Detector Head Model: SLR-24DH
Detector Head Type: Conventional Photoelectric
Sensitivity Test Method: Self diagnostic test
Remote Indication Capability (Refer to DSD Accessories Data Sheet for Specifications): Power, Alarm, Horn, Piezo, Test
Air Velocity: 300 to 4000 ft./min
Ambient Temperature: 32°F to 120°F (0°C to 49°C)
Humidity: 10% to 85% Relative humidity (noncondensing)
Housing Material: 18 G.A. steel backbox, clear plastic cover
Finish: Grey paint
Dimensions: 9 1/8"L x 7 1/4" W x 2 1/4" H
Maximum Net Weight 3 lbs
