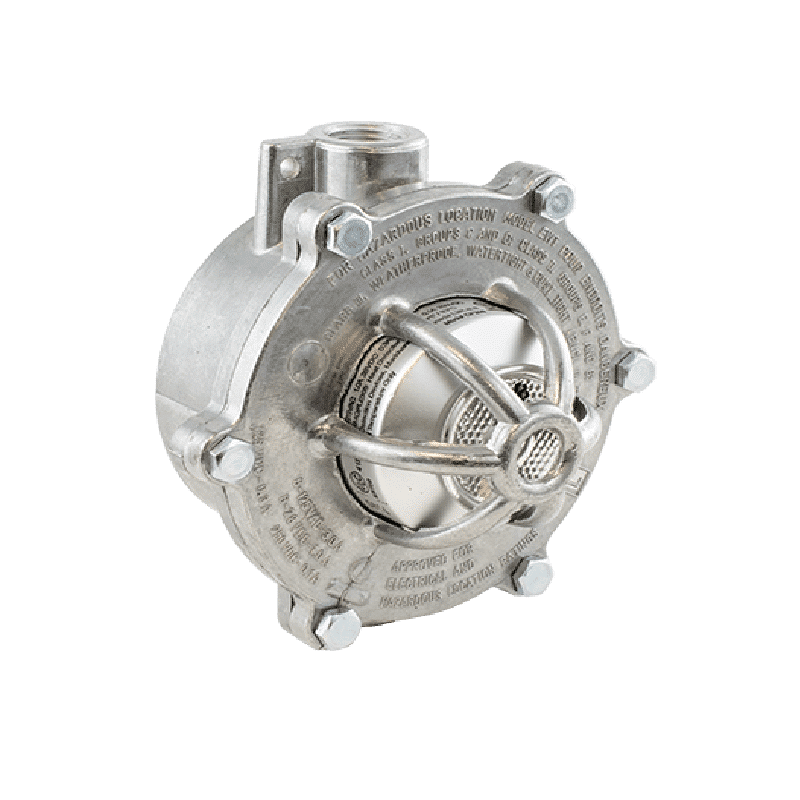

Potter CF-135 EWT Explosion Proof Heat Detector

Name: Potter CF-135 EWT Explosion Proof Heat Detector
SKU: fs10801
Availability: OutOfStock

See all products from potter

AED 1,739.67 VAT included

Potter THERMOFLEX Model CF-135EWT is a fixed temperature only detector. The fixed temperature portion consists of a spring-loaded plunger retained by a fusible alloy that releases when the ceiling temperature reaches 135°F (57°C). When released, the plunger strikes a normally open set of contacts and holds them closed.

Out of stock

Compare

Product Code : fs10801 Brand: Potter Seller: Fireshop1001 Approved by : [woo_pro_badges_extended]

free delivery

Above AED1000 in Dubai
WARRANTY

For 365 days
always authentic

Only Reputed Brands
EASY PAYMENT

Multiple payment options

Description

The THERMOFLEX Model CF-135EWT is a fixed temperature only detector. The fixed temperature portion consists of a spring-loaded plunger retained by a fusible alloy that releases when the ceiling temperature reaches 135°F (57°C). When released, the plunger strikes a normally open set of contacts and holds them closed. Spacing on an uninterrupted ceiling is 30 ft. (9m). The CF-135MP is identified by a black dot on the heat collector fin.

Features

Explosion proof, weather proof, water tight, and dust tight
Single circuit with normally open contact configuration
Product includes 5 year warranty
Cast aluminium housing
Low profile design

Specifications

Product: Explosion proof Heat Detector
Brand: Potter
Model: THERMOFLEX CF 135 EWT
Dimensions: 5.5 (14 cm) x 3.6 (9.3 cm)
Device Weight: 1.7 lbs (800 grams)
Detector Housing: ULC Listed, Explosion Proof, Water andDust Tight
Contact Ratings: 3 Amps at 125VAC, 1 Amp at 28VDC, 0.3 Amps at 125VDC, 0.1 Amps at 250 VDC
Environmental Limitations: -40°F (-40°C) - 250°F (120°C), Exclusive of Operating Temperature
Mounting: Enclosure with 1/2 hub included
