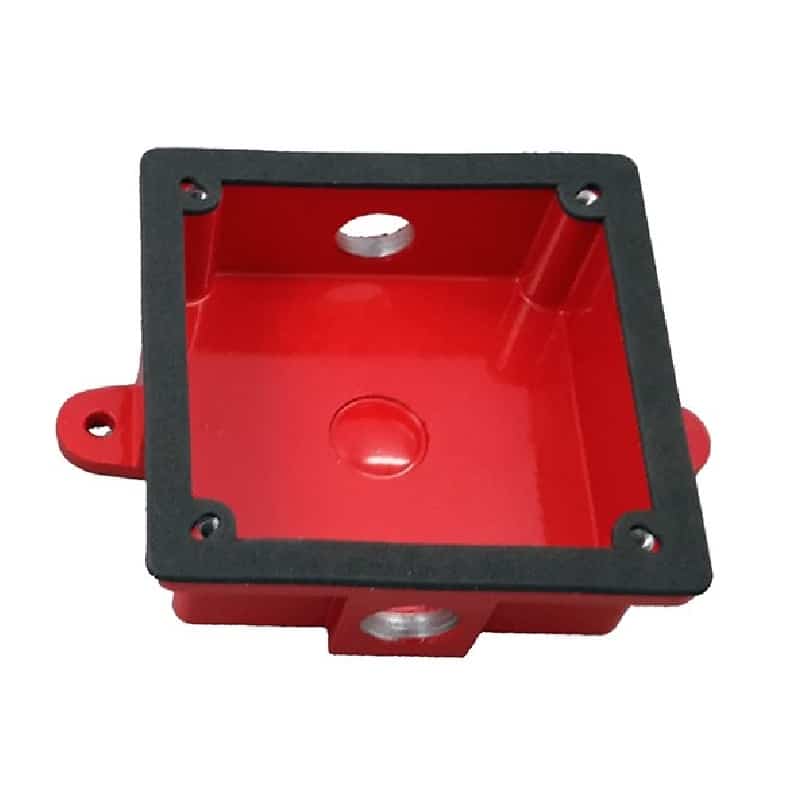

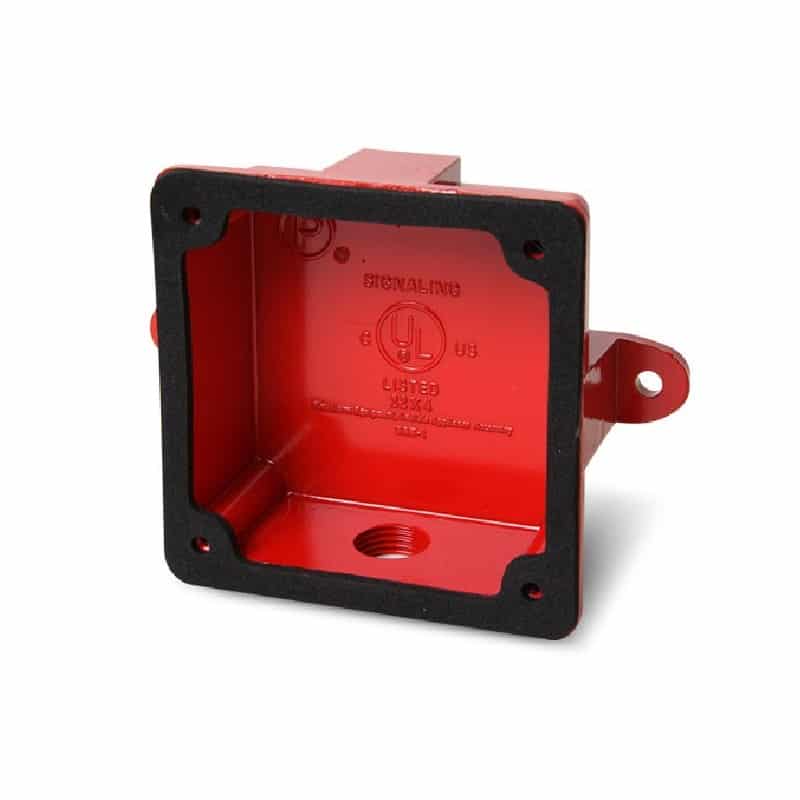

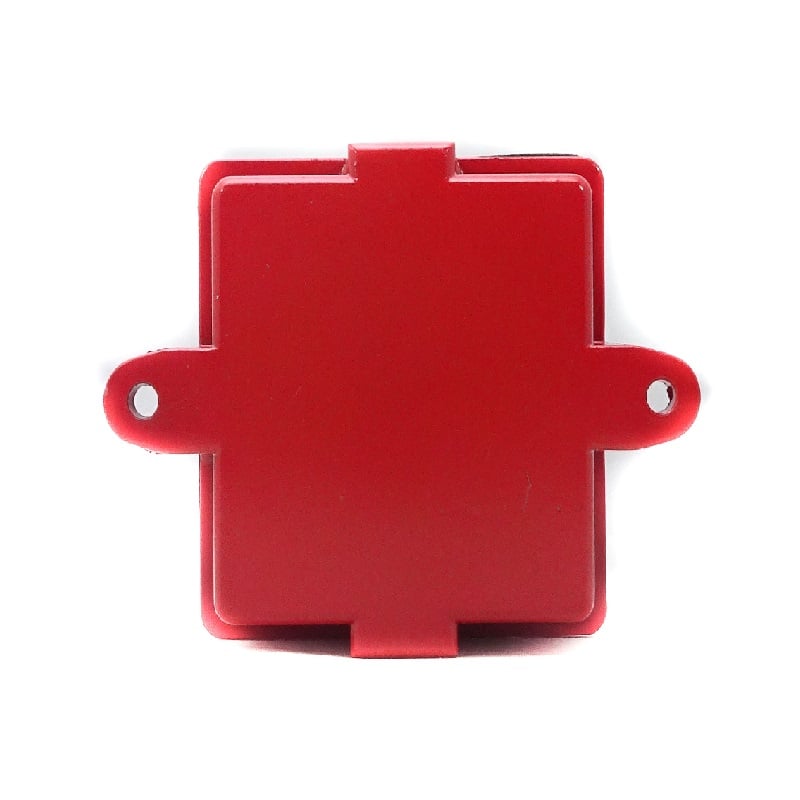

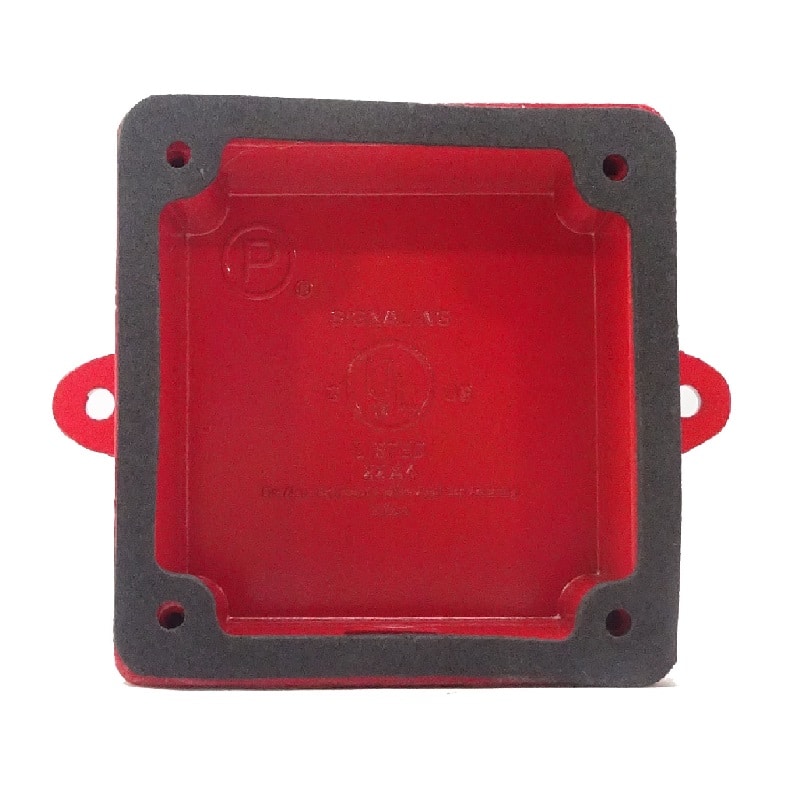

Potter BBK-1 Weatherproof Bell Back Box

Name: Potter BBK-1 Weatherproof Bell Back Box
SKU: fs10829
Availability: InStock

See all products from potter

AED 78.75 VAT included

The Potter BBK1 is a 4 square weatherproof bell back box for indoor or outdoor applications. In outdoor or wet installations, the bell must be mounted with weatherproof backbox, BBK1 or BBX1.

Compare

Product Code : fs10829 Brand: Potter Seller: Fireshop1001 Approved by : [woo_pro_badges_extended]

free delivery

Above AED1000 in Dubai
WARRANTY

For 365 days
always authentic

Only Reputed Brands
EASY PAYMENT

Multiple payment options

Description

The Potter BBK1 is a 4in square weatherproof bell back box for indoor or outdoor applications. In outdoor or wet installations, the bell must be mounted with weatherproof backbox, BBK1 or BBX1. Standard electrical boxes will not provide a weatherproof enclosure. If the bell and/or assembly is exposed to moisture, it may fail or create an electrical hazard.

These vibrating type bells are designed for use as fire, burglar or general signaling devices. They have low power consumption and high decibel ratings. The unit mounts on a standard 4in (101mm) square electrical box for indoor use or on a model BBK-1 weatherproof backbox or BBX-1 deep weatherproof backbox for outdoor applications. Weatherproof backbox model BBK-1, Stock No. 1500001.

Features

1. The bell shall be installed in accordance with NFPA 13, 72, or local AHJ. The top of the device shall be no less than 90? AFF and not less than 6? below the ceiling.
2. Remove the gong.
3. Connect wiring.
4. Mount bell mechanism to backbox (bell mechanism must be mounted with the striker pointing down).
5. Reinstall the gong (be sure that the gong positioning pin, in the mechanism housing, is in the hole in the gong).
6. Test all bells for proper operation and observe that they can be heard where required (bells must be heard in all areas as designated by the authority having jurisdiction)
