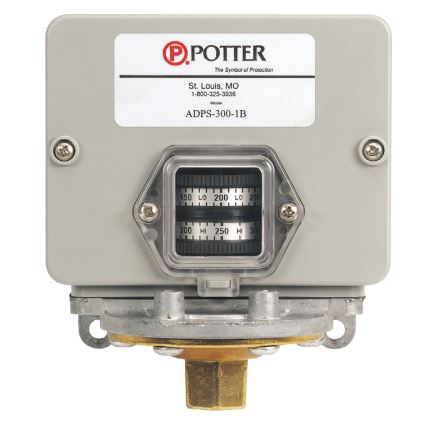

Potter ADPS (Adjustable Deadband Pressure Switch) 25- 300 PSI, BRASS(Obsolete Product)
See all products from potterVAT included
Potter ADPS is an Adjustable Deadband Pressure Switch with independent set and reset points that are adjustable throughout the entire operating range of the switch. The minimum deadband (minimum span between set and reset points) may be obtained at any point in the operating range of the switch. A change in pressure greater than the high setting will reposition the switch mechanism to open or close a single snap-action electrical switch.
Description
Potter ADPS is an Adjustable Deadband Pressure Switch with independent set and reset points that are adjustable throughout the entire operating range of the switch. The minimum deadband (minimum span between set and reset points) may be obtained at any point in the operating range of the switch. A change in pressure greater than the high setting will reposition the switch mechanism to open or close a single snap-action electrical switch. This control device is designed for use as an operating control in applications sensing air, water, or any fluid not harmful to the pressure connection, diaphragm or nitrile pressure-sealing o-ring
Features
- For control of pumps, compressors, etc. when used with a motor starter
- Adjustable range of 25-300 PSIG
- Independent set and reset points
- Corrosion resistant
Specifications
- Product: Adjustable Deadband Pressure Switch
- Brand: Potter
- Adjustable Operating Range: 25-300 PSIG
- Proof Pressure: 400 PSIG
- Factory Setting: 90/60 PSIG
- Ambient/Media Temperature Range: -4°F to 180°F (-20°C to 82°C)
- Construction: NEMA Type 4Xm (IP66) enclosure for indoor or outdoor use. (To maintain 4X rating, use appropriate Type 4 conduit hub.), Forged brass Pressure Connection, Aluminum Diecast Base with, Polymer Enclosure, Beryllium Copper Diaphragm, Nitrile Pressure Sealing O-ring
- Switch Contact: Snap-action SPDT (Form C), 15 Amps at 125 VAC, 8 Amps at 250 VAC, 1/8 HP at 125 VAC, 1/4 HP at 250 VAC, Non-inductive loads only
