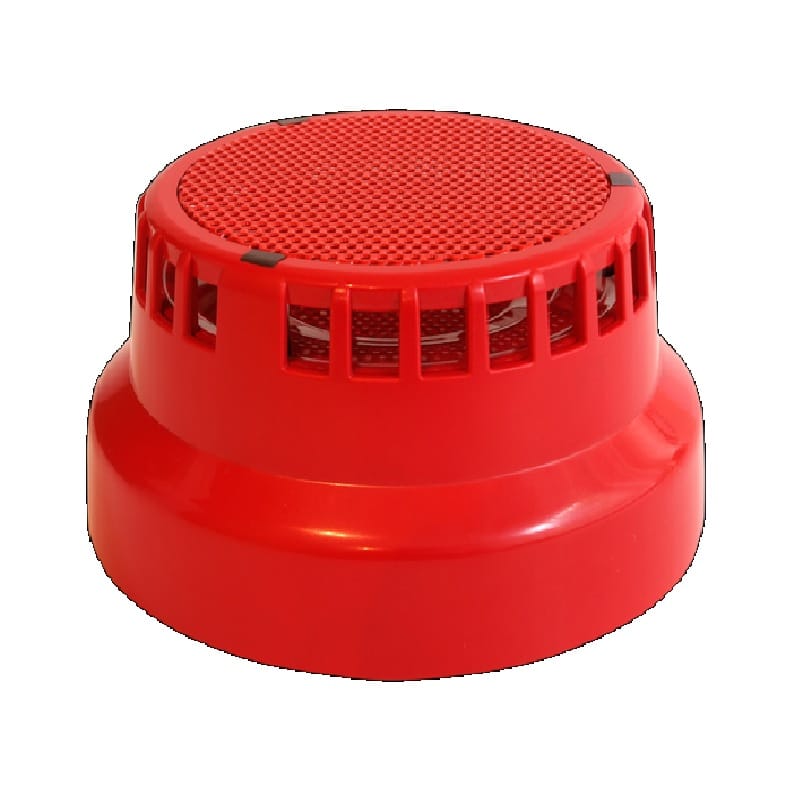

Polon Alfa SAW-6006 Addressable acoustic sounder (with Battery)

Polon Alfa SAW-6006 Addressable acoustic sounder (with voice messages) are designed for acoustic signalization of fire with voice messages. It is dedicated for operation in addressable detection lines of POLON 6000 and POLON 4000 system only. They are activated by the control panel when all programmed criterion is fulfilled e.g. fire alarm in a particular zone, general fire alarm, etc.

Electronic circuits with piezoelectric sounder are fitted into red housing made with flame retardant material. Inside the housing, there is a place to put and connect 9 V battery. The sounder is installed in G-40S base which is made with the same material and which is a kit with the sounder. There is a screwless connector inside the base for connection of wires. There are six connectors: two pairs marked as + and – for connection of detection loop (input and output) and two for optional external power supply.
