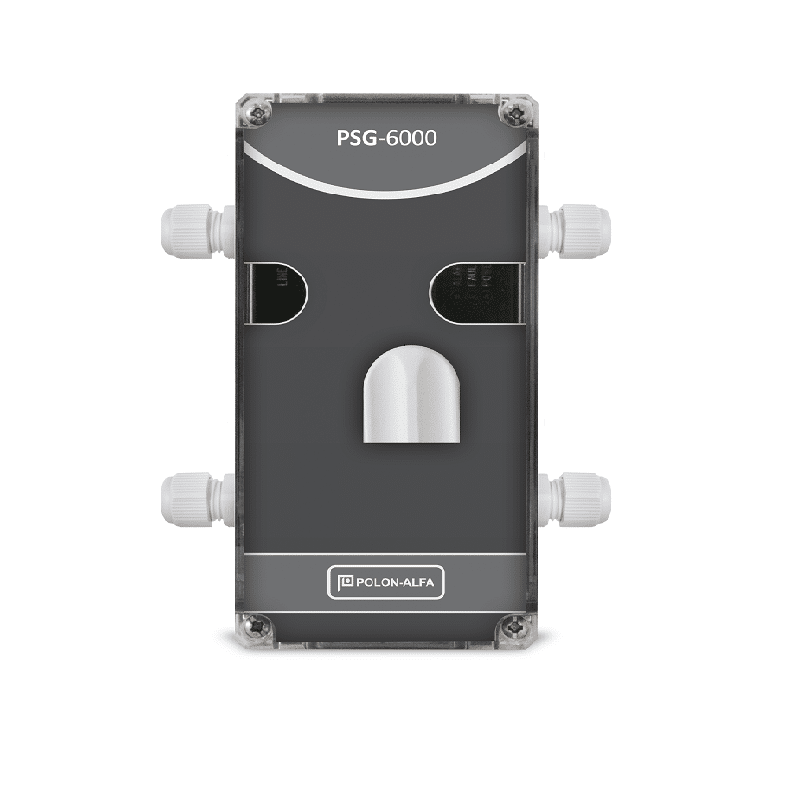

Polon Alfa PSG-6002 LPG (propane-butane) Gas Detector
See all products from polon-alfaAED 622.10 VAT included
Polon-Alfa PSG-6002 gas detectors are designed to detect and continuously monitor the presence of flammable and toxic gases in potentially hazardous areas, especially in garages and boiler rooms. When they are exceeded, the detectors send information to the cooperating CDG 6000. The control panel triggers the ventilation in order to remove excess harmful gases from the room and may also provide a control signal to the gas shut off valve.
-
free delivery
Above AED1000 in Dubai
-
WARRANTY
For 365 days
-
always authentic
Only Reputed Brands
-
EASY PAYMENT
Multiple payment options
Description
Polon-Alfa PSG-6002 gas detectors are designed to detect and continuously monitor the presence of flammable and toxic gases in potentially hazardous areas, especially in garages and boiler rooms. When they are exceeded, the detectors send information to the cooperating CDG 6000. The control panel triggers the ventilation in order to remove excess harmful gases from the room and may also provide a control signal to the gas shut off valve. PSG-6002 detectors operate only on surveillance lines of addressable CDG 6000 gas detection panels. They require additional, external 9-30 V DC power supply.
Features
- Detectors are made in the form of a printed circuit board with electronic components and connectors
- The ventilation element installed in the housing allows the detected gas to reach the sensor.
- Enclosure guarantee a high level of ingress protection IP level, enabling installation of detectors in a difficult environmental conditions.
- It continuously monitor the presence of flammable and toxic gases in potenti ally hazardous areas
- Each detector has a set of three alarm thresholds, related to a strictly defined concentration of gas in the air.
- Detectors are powered with an external 12 V DC (24 V DC) power supply or with a 230 V AC.
Specifications
- Product: LPG (propane-butane) Gas Detector
- Brand: Polon Alfa
- Model: PSG-6002
- Detected gas: LPG (propane-butane) Gas Detector
- Sensor module: MSG-6002
- Type of sensor: semiconductor
- Power supply voltage: 230 V AC ± 10 %
- Power consumption: max 30 mA / 12 V
- Working conditions: -20 ÷ 50 °C humidity 10 ÷ 90 %
- Storage conditions: 0 ÷ 40 °C humidity 10 ÷ 80 %
- Protection level: IP54 (in the recommended mounting position)
- Load capacity of relay outputs: 3 A / 30 V DC 3 A / 250 V AC
