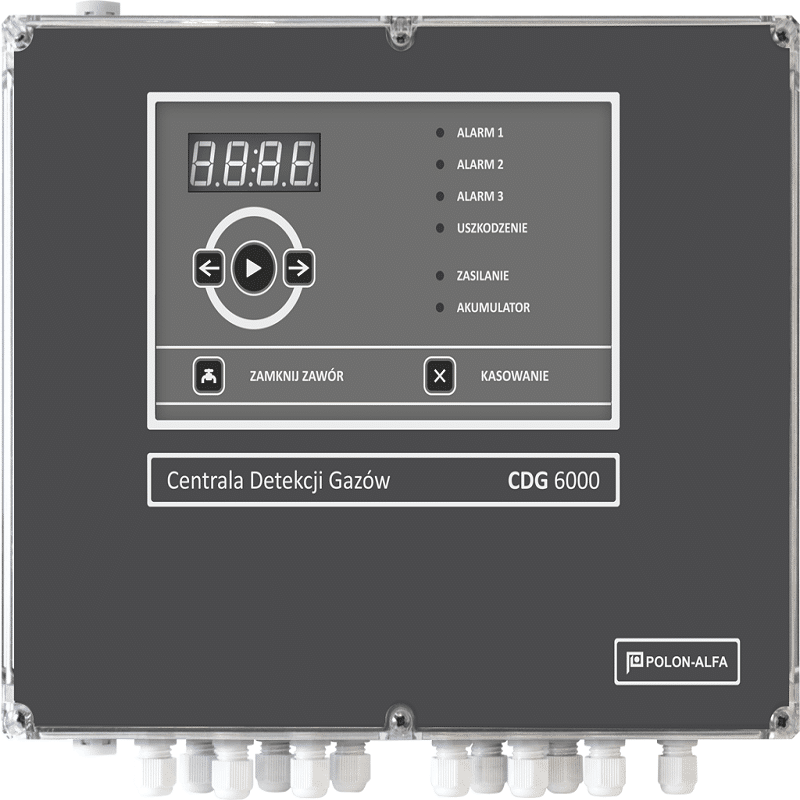

Polon Alfa CDG-6000 Addressable Gas Detection Control Panel(Without Programming)
See all products from polon-alfaAED 3,010.54 VAT included
Polon Alfa CDG 6000 Addressable Gas Detection Control Panel is designed to signal the leakage of combusti ble gases (CNG, LPG) and dangerous concentrations of carbon monoxide (CO), upon receipt of informati on from connected PSG-6000 gas detectors. The control panel can operate with maximum 16 addressable gas detectors range PSG-6000.
-
free delivery
Above AED1000 in Dubai
-
WARRANTY
For 365 days
-
always authentic
Only Reputed Brands
-
EASY PAYMENT
Multiple payment options
Description
Polon Alfa CDG 6000 Addressable Gas Detection Control Panel is designed to signal the leakage of combusti ble gases (CNG, LPG) and dangerous concentrations of carbon monoxide (CO), upon receipt of information from connected PSG-6000 gas detectors. The control panel can operate with maximum 16 addressable gas detectors range PSG-6000. The control panel has relay outputs for controlling external devices and dedicated output for the shut-off valve and monitoring inputs. Control panel is equipped with extensive diagnostic and self-monitoring systems, guarantees long-lasting and reliable operation of the dangerous gas concentrations early-warning system.
Features
- Control and signal the leakage of combustible gases (CNG, LPG) and dangerous concentrations of carbon monoxide (CO)
- Detection and signalling of exceeding alarm thresholds of gas concentration
- Automatic activation of outputs to external signalling and control devices
- Monitor of the status of external devices
- Automatic closing of the gas shut-off valve
- Automatic control of internal circuits
- Digital transmission of informati on to the POLON 6000 fire alarm system.
Specifications
- Product: Addressable Gas Detecti on Control Panel
- Brand: Polon Alfa
- Model: CDG 6000
- Dimensions (without cable glands): 300 x 230 x 86 mm
- Weight (without batteries): < 2.3 kg
- Power supply: Mains input voltage 230 V
- Operating gas detectors: type PSG-6000
- Max number of detectors in the line: 16
- Relay outputs: 4
- Relay output max current load: 8 A / 30 V DC, 8 A / 250 V AC
- Shut-off valve control output: 12 V / 11 A
- Monitoring inputs: 4
- Auxiliary devices power supply output: 0,5 A / 12 V
- Events log: 1000
- Enclosure IP rate: IP 56
