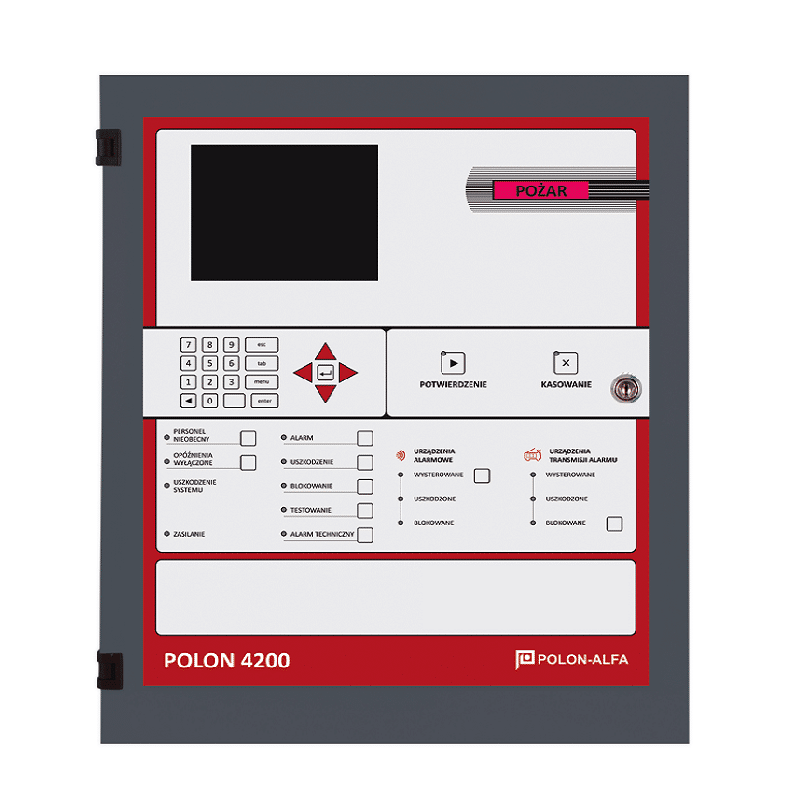

Polon Alfa 4200 Fire alarm Control Panel(Without Programming)

Name: Polon Alfa 4200 Fire alarm Control Panel(Without Programming)
SKU: FS0025
Availability: InStock

See all products from polon-alfa

AED 3,721.20 VAT included

The POLON 4200 fire alarm control panel is designed to integrate all interactive addressable POLON 4000 fire alarm system elements.

The control panel co-ordinates operation of all units in the system and decides about actuation of a fire alarm, control of the interoperating signalization and fire protection equipment as well as transmitting information to the monitoring centre or to the supervising system.

The POLON 4200 control panel is recommended for protection of various premises (especially medium size buildings) such as hotels, office buildings, banks, warehouses, historical buildings, intelligent buildings, etc.

Compare

Product Code : FS0025 Brand: Polon-Alfa Seller: Fireshop1001 Approved by : [woo_pro_badges_extended]

free delivery

Above AED1000 in Dubai
WARRANTY

For 365 days
always authentic

Only Reputed Brands
EASY PAYMENT

Multiple payment options

Description

The POLON 4200 fire alarm control panel is designed to integrate all interactive addressable POLON 4000 fire alarm system elements.

The POLON 4200 control panel interoperates with 4043 model range detectors – without possibility to use interactive alarm variants – on with such possibility when using 4046 model range detectors.

Features

The POLON 4200 control panel interoperates with 4043 model range detectors.
The POLON 4200 control panel is recommended for protection of various premises (especially medium size buildings).

Specifications

Supply voltage: main: 50Hz, 230V +10% - 15%; Supply voltage: standby: 24V 17Ah to 38Ah HP7-12 KOBE
Max. quiescent current consumption: 0.4A; Max. current consumption from power grid: 0.8A
Max. loop capacity: 300nF; Max. loop current: 50mA (20mA); Max. current for auxiliary devices: 0.1A
Line elements installed in detection lines: analogue detectors type 4043, 4046; manual call points ROP-4001, ROP-4001H, ROP-4001M, ROP-4001MH; adapters ADC-4001M, ADC-4001; sirens SAL-4001; input/output devices EKS-4001 multi-output devices EWS-4001; multi-input devices EWK-4001
Potential-free supervised relay output: current load 1A/24V
Number of addressable lines: 4; Numer of alarming variants: 14; Signaling lines (potential): 2; Number of detectors in line: 64
Auxiliary devices output current carrying capacity: 500mA/24V
ADC-4001M current consumption from detection line: 0.5, 1.33, 2.2, 2.5, 6.8, 16mA (w zależności od trybu pracy)
Current consumption by elements like detectors, manual call points, signalling devices, EKS, EWS, EWK-4001: from 130uA to 170uA (depending from the element type)
Programmable outputs: 8 relays 1A/24V; 1 linia sygnałowa o obciążalności 0.5A/24V; 1 linia sygnałowa o obciążalności 0.1A/24V;
Programmable inputs: 2 monitoring inputs; Max. detection line resistance: 2x100Ohm
Detection line type: loop with ability to eliminate short circuit or wire break, radial
Compatibility with devices: computer keyboard, computer, digital surveillance system, parallel indication terminals TSR-4000
Time programming ranges: confirmation of the I-st stage of alarm 0-10min; fire alarm verification time 0-10min; alarm output delay time 0-10min;
Number of detection lines: 4; Max. number of point detectors in line: 64; Max. number of beam detectors in line: 64; Number of general alarm relay outputs: 1 change-over; Number of addresses: on a lines 64; Number of detection zones: 256; Ingress protection: IP 30; Operating temperature range: from -5°C to 40°C; Dimensions (mm): 483x393x190; Weight: without battery approx. 11kg
