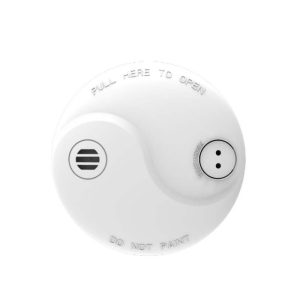

ZETA ZT-MS Mains Photoelectric Smoke Alarm with 9V Battery
AED 157.50 VAT included
Next product
Firex 4.5 kg standard Automatic Ceiling Mounting Type HFC227 Extinguisher
AED 882.00 VAT included
Description

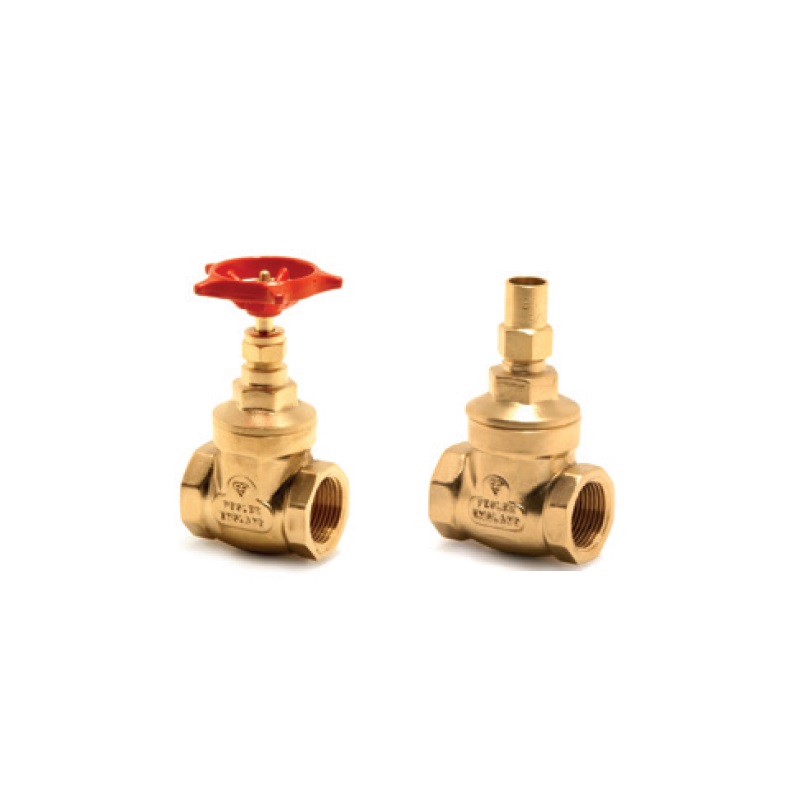

Pegler 1068 PT 3 Inch Lockshield Gate valve Forged Brass Valve with a maximum allowable pressure greater than 0.5 bar are covered by these new Regulations. Valves are categorized according to their maximum working pressure, size and rising level of hazard. The level of hazard varies according to the fluid being carried. Fluids are classified as Group 1, dangerous fluids or Group 2, all other fluids including steam.
Features
- Forged Brass Wedge(1/4" to 2.1/2") Gravity Die Cast Brass (3 & 4")
- Forged Brass Body(1/4" to 2") Gravity Die Cast Brass (2.1/2" to 4")
- Forged Brass Bonnet(1/4" to 3") Gravity Die cast Brass (4")
- Brass Bar Gland Nut(1/4" to 1") Forged Brass (1.1/4" to 4")
- Brass Bar Lockshield
- Brass Bar Stem Ring
- PTFE Gland Packing
- Brass Bar Gland
- Brass Bar Stem
Specifications
- Product: Lock Shield Valve
- Brand: Pegler
- Model: 1068 PT
- Size: 3 inch
- Minimum Operating Pressure (bar): No Minimum Operating Pressure
- Maximum Cold Working Pressure (bar): 20.0 bar at temperatures up to 100oC
- Maximum Hot Working Pressure (bar): 9 bar at temperatures up to 180oC
