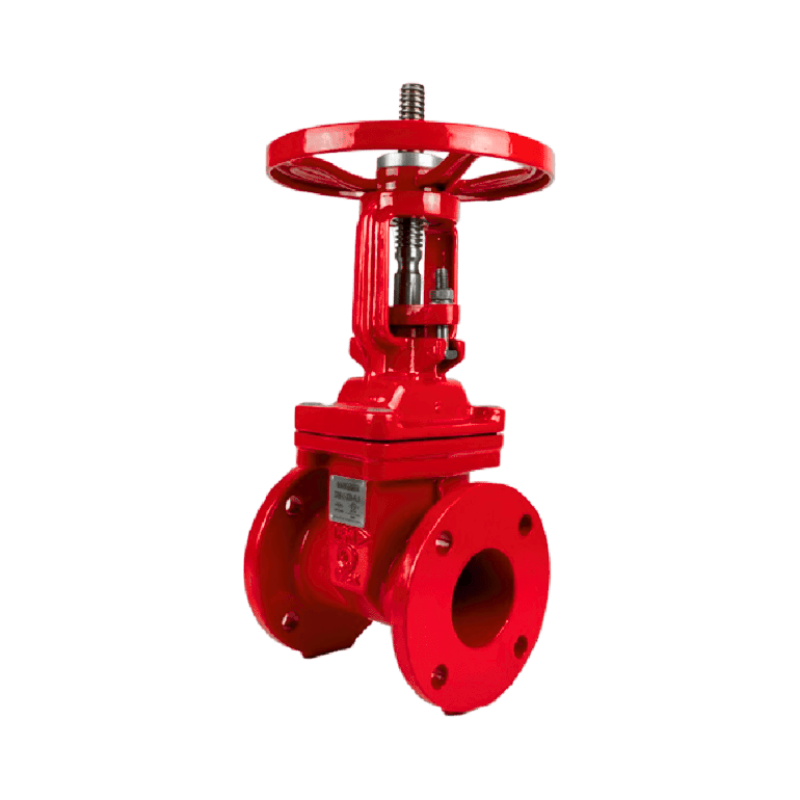

OS&Y Gate Valve Flange Type 6″ PN16 Mechanical
AED 1,575.00 VAT included
6″ PN16 flanged OS&Y gate valve with rising stem, mechanical operation, and full port design. Suitable for water and general service applications.
In stock
Product Code : fs0507650
Brand: Firesupplies
Seller: Fireshop1001
Approved by : [woo_pro_badges_extended]
-
free delivery
Above AED1000 in Dubai
-
WARRANTY
For 365 days
-
always authentic
Only Reputed Brands
-
EASY PAYMENT
Multiple payment options
Description
This 6″ PN16 flanged gate valve features outside screw and yoke design with bronze-mounted disc and renewable seats. Includes handwheel operation, ASTM A216 WCB body, and EN 1092-1 PN16 flange faces. Ideal for water supply, fire protection, and industrial piping systems.
Features
- Outside screw and yoke (OS&Y) design
- Rising stem for visual position indication
- Full port (full bore) design
- Bronze-mounted disc
- Renewable seat rings
- Handwheel operation
- PN16 pressure rating
- EN 1092-1 flange faces
- Fire-safe design (optional)
Specifications
- Size: 6" (DN150)
- Pressure Rating: PN16 (16 bar)
- Temperature Range: -29°C to +425°C
- End Connection: RF Flange EN 1092-1
- Body Material: ASTM A216 WCB
- Trim Material: Bronze (ASTM B62)
- Seat Material: 13% Cr Steel + Graphite
- Stem Material: SS410
- Standards: API 600, ISO 10434
- Weight: 98kg (body only)
