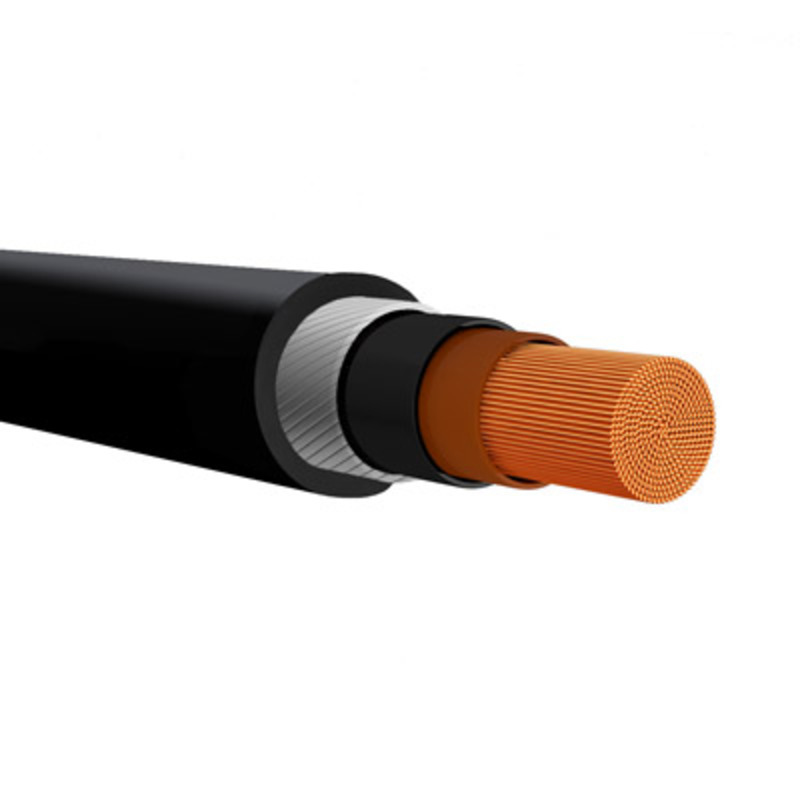

NCI 630 mm² Single‑Core Armoured Power Cable (600/1000 V)

Name: NCI 630 mm² Single‑Core Armoured Power Cable (600/1000 V)
SKU: fs0504325
Availability: InStock

See all products from nci

AED 315.00 VAT included

NCI – 630mm Single Core Armoured Cable

In stock

Compare

Product Code : fs0504325 Brand: NCI Seller: Fireshop1001 Approved by : [woo_pro_badges_extended]

free delivery

Above AED1000 in Dubai
WARRANTY

For 365 days
always authentic

Only Reputed Brands
EASY PAYMENT

Multiple payment options

Description

NCI 630 mm² single-core armored cable is engineered for heavy-duty power transmission in demanding industrial and utility environments. It features a large cross-section conductor insulated with XLPE and protected by aluminum wire armor and a durable PVC or LSF outer sheath, offering excellent mechanical strength, moisture resistance, and fire safety. Rated for 600/1000 V, it’s perfectly suited for fixed installations, cable ducts, trefoil piping, and direct burial applications.

Features

Robust Sheathing: PVC (type ST2) or low‑smoke, zero‑halogen (LSZH) sheath options available, designed for outdoor and fire-risk environments
Armoured With Aluminium Wire (AWA): Helically wound for mechanical protection and non-magnetic, reducing eddy current losses
Standards Compliant: Meets IEC 60502, BS 5467/6724, and BS 7655 regulations for insulation, armouring, and fire resistance
XLPE Insulation: Cross-linked polyethylene rated for continuous use at 90 °C, excels in electrical and thermal stability
Voltage Rating 600/1000 V: Suitable for low-voltage industrial, commercial, and infrastructure use cases
Operating Temperature Range: –15 °C to +90 °C, ensuring reliability in diverse climates
Single-Core, 630 mm² Conductor: Massive capacity suited for high-current systems
