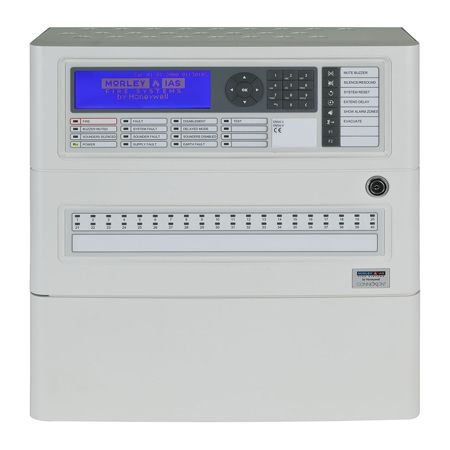

Morley 714-001-242 Fire Alarm Control Panel

Name: Morley 714-001-242 Fire Alarm Control Panel
SKU: fs05025169
Availability: InStock

AED 6,552.00 VAT included

Morley – Fire Alarm Control Panel

In stock

Compare

Product Code : fs05025169 Seller: Fireshop1001 Approved by : [woo_pro_badges_extended]

free delivery

Above AED1000 in Dubai
WARRANTY

For 365 days
always authentic

Only Reputed Brands
EASY PAYMENT

Multiple payment options

Description

”

MORLEY DXC4 FOUR LOOP FIRE ALARM CONTROL PANEL – MORLEY IAS PROTOCOL

The Morley-IAS DXc4 Connexion panel is ideally suited for use in the protection of small to medium sized buildings. All in all, a compact, high performance, feature rich, economical fire alarm control panel designed to help both the installer and the end user.

The Morley DXc4 Connexion is an enhancement of the Morley-IAS Dimension panel range, connecting the traditional Morley-IAS qualities of reliability, flexibility and value with advanced features and intuitive functionality.

The DXc4 Connexion fire alarm control panel has been developed to be the most time efficient fire panel on the market to install. Simply fix the control panel to the wall, connect the field wiring, power up and in as few as five button presses you can have a compliant, working fire alarm system. The panels large graphical display provides a clear menu structure making the whole initial set-up process quick, clear and intuitive.

Additionally, programming the control panel couldnt be easier. Complex configuration can be achieved by using either the panels mobile phone style key pad or by using the Windows PC programming tool supplied with the panel (panel to PC programming lead supplied seperately – see related products below). The flexible PC programming tool also allows text messages for devices or zones to be imported from an Excel spread sheet, saving further time.

Morley DXc4 Fire Alarm Panel Specification

“

Features

Battery backed real-time clock (2 & 4 loop)
2 independent sounder circuits
500mA multi-protocol loop driver
2 x onboard monitored inputs
Optional programmable keyswitch for selected functions
Plug-in connectors

Specifications

Display : 6x40 character (240x64 pixels) blue liquid crystal display with backlight illumination
Control Keys : Evacuate, Silence/Resound, Mute, Buzzer, Extend Delay, System Reset, Show Alarm Zones
Programmable Keys : 2 independent programmable function Keys and LED indicators
Programming Keys : 12 button alpha numeric key pad inc. cancel and return keys plus 4 navigation keys and an OK key
Indicators : Fire, Fault, Disablement, Test, Buzzer Muted, Delayed Mode, Sounders Silenced, Sounders Disabled and Power. Also dedicated fault LEDs for System Fault, Supply Fault and Earth Fault. 40 or 80 LED fi re zone indicators optional.
