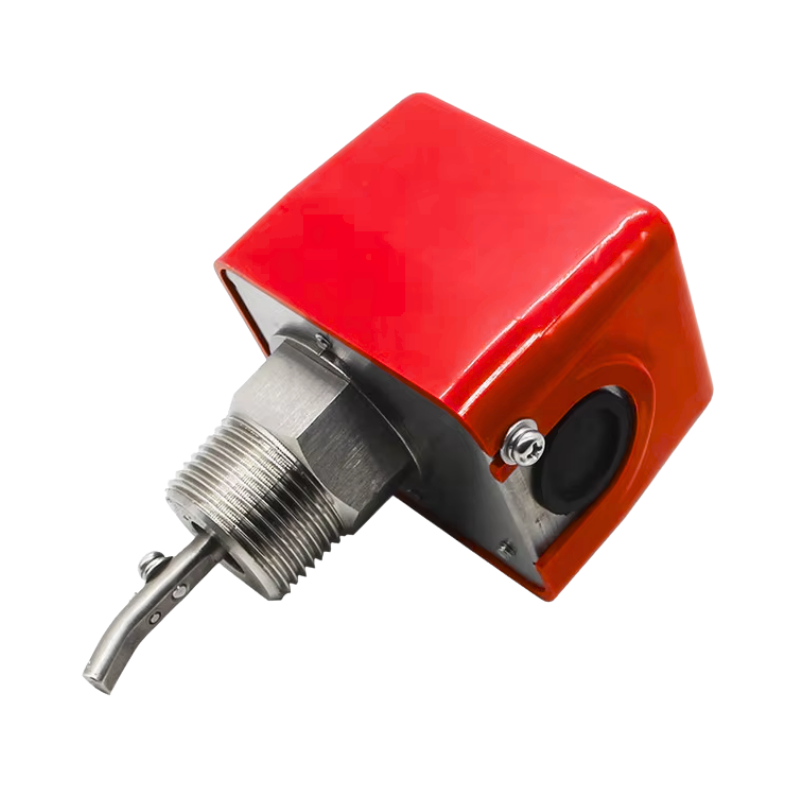

Mechanical Water Flow Switch 3″
AED 257.25 VAT included
3″ mechanical paddle-type flow switch for fire sprinkler systems, with adjustable sensitivity and SPDT contacts.
In stock
Product Code : fs0507621
Brand: Firesupplies
Seller: Fireshop1001
Approved by : [woo_pro_badges_extended]
-
free delivery
Above AED1000 in Dubai
-
WARRANTY
For 365 days
-
always authentic
Only Reputed Brands
-
EASY PAYMENT
Multiple payment options
Description
This 3″ mechanical flow switch detects water movement in fire protection systems. Features a stainless steel paddle, adjustable trip point (5-25 GPM), and SPDT electrical contacts. UL/FM approved for fire sprinkler applications.
Features
- Stainless steel paddle
- Adjustable trip setting (5-25 GPM)
- SPDT electrical contacts
- UL/FM approved
- Weatherproof enclosure
- Manual test lever
- No external power required
- Corrosion-resistant construction
- Integral time delay adjustment
- Includes mounting gasket
Specifications
- Size: 3" (DN80)
- Connection: 3" ANSI 125 flange
- Pressure Rating: 250 PSI
- Flow Range: 5-25 GPM adjustable
- Electrical Rating: 5A @ 120VAC
- Contacts: SPDT (Form C)
- Material: Bronze body, SS316 paddle
- Temperature Range: 32°F to 150°F (0°C to 65°C)
- Standards: UL 864, FM 1630
