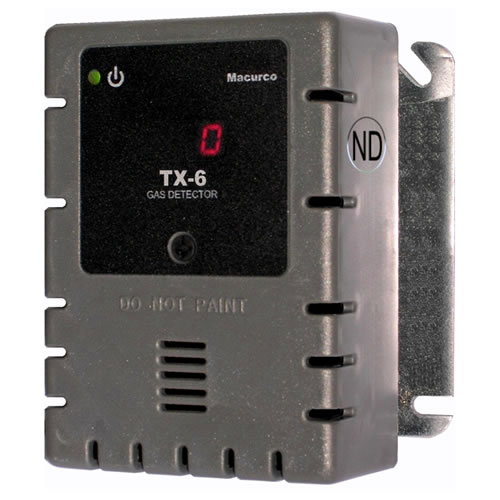

Macurco TX6-ND Nitrogen Dioxide (NO2) Detector
See all products from macurcoAED 2,667.38 VAT included
Macurco TX6 Nitrogen Dioxide Detector are low voltage, dual relay gas detector, controller and transducers. The 6-Series have selectable 4-20mA output, buzzer and digital display options. It is an electronic detection system used to measure the concentration of various gases and provide feedback and automatic control to help reduce gas concentrations in parking garages, warehouses, boiler rooms, vehicle maintenance facilities, battery rooms, kitchens or other commercial applications.
In stock
-
free delivery
Above AED1000 in Dubai
-
WARRANTY
For 365 days
-
always authentic
Only Reputed Brands
-
EASY PAYMENT
Multiple payment options
Description
The Macurco 6-Series are low voltage, dual relay gas detector, controller and transducers. The 6-Series have selectable 4-20mA output, buzzer and digital display
options. It is an electronic detection system used to measure the concentration of various gases and provide feedback and automatic control to help reduce gas concentrations in parking garages, warehouses, boiler rooms, vehicle maintenance facilities, battery rooms, kitchens or other commercial applications.
Features
- 12-24VAC and 12-32VDC input
- 5A SPDT relay controls valves, louvers or exhaust fans
- 0.5A N.O. or N.C alarm relay connects to warning devices or control panels
- 4-20mA current loop - compatible with the Macurco DVP-120 Control Panel
- Compatible with the Macurco MRS-485 Modbus Adapter
- ETL Listed to UL 61010-1, CAN/CSA C22.2 No 61010-1
Specifications
- Gas Detection: Nitrogen Dioxide (NO2)
- Range: 0-200ppm
- Default Relay Settings: Fan - 2.5ppm
- Alarm: 5.0ppm
- Power: 3 W (max) from 12 to 24 VAC or 12 to 32 VDC
- Current @ 24 VDC: 75 mA in alarm, 50 mA fan relay on and 23 mA stand by
- Shipping Weight: 1 pound (0.45 kg)
- Size: 4 1/2 x 4 x 2 1/8 in. (11.4 X 10.2 X 5.4 cm)
- Color: Dark gray
- Connections: plugs/terminals
- Mounting box: (not included) 4x4 electric
- Fan relay: 5A, 240 VAC, pilot duty, SPDT, latching or non-latching
- Fan relay actuation: Selectable within sensor range
- Fan Delay Settings of 0, 1, 3 (default), 5 and 10 minutes
- Fan Minimum Runtime settings are OFF (default), 3, 5, 10 or 15 minutes
Questions and answers of the customers
There are no questions yet. Be the first to ask a question about this product.
Reviews
Related products

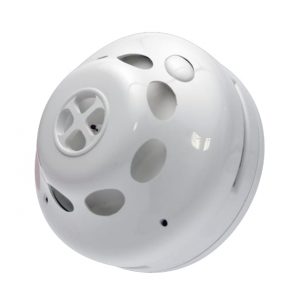

Elotec ROYAL TV 2000+ Wireless Heat Detector with Sounder
