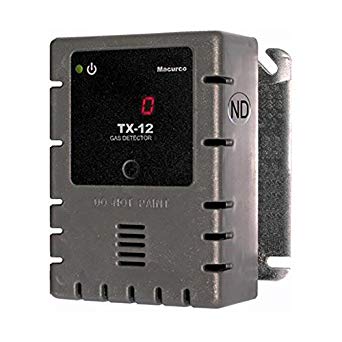

Macurco TX12-ND Nitrogen Dioxide (NO2) Detector
See all products from macurcoAED 2,697.23 VAT included
Macurco TX12 Nitrogen Dioxide Detector are line voltage powered (100-240VAC), dual relay gas detector, controller and transducers. The 12-Series utilizes an internal switching power supply that is capable of using line voltage between 100 and 240VAC and 50-60Hz. The 12-Series have selectable 4-20mA output, buzzer and digital display options. It is an electronic detection system used to measure the concentration of various gases and provide feedback and automatic control to help reduce gas concentrations in parking garages, warehouses or other commercial applications.
Available on backorder
-
free delivery
Above AED1000 in Dubai
-
WARRANTY
For 365 days
-
always authentic
Only Reputed Brands
-
EASY PAYMENT
Multiple payment options
Description
The Macurco 12-Series are line voltage powered (100-240VAC), dual relay gas detector, controller and transducers. The 12-Series utilizes an internal switching power supply that is capable of using line voltage between 100 and 240VAC and 50-60Hz. The 12-Series have selectable 4-20mA output, buzzer and digital display options. It is an electronic detection system used to measure the concentration of various gases and provide feedback and automatic control to help reduce gas concentrations in parking garages, warehouses or other commercial applications.
Features
- Mounts on a standard 4” x 4” electrical box
- 5 A SPDT relay controls valves, louvers or exhaust fans
- 0.5 A N.O. or N.C alarm relay connects to warning devices or control panels
- 4-20mA current loop - compatible with the Macurco DVP-120 Control Panel
- ETL Listed to UL 61010-1, CAN/CSA C22.2 No 61010-1
Specifications
- Gas Detection: Nitrogen Dioxide (NO2)
- Range: 0-200ppm
- Default Relay Settings: Fan - 2.5ppm
- Alarm: 5.0ppm
- Power: 100-240VAC (50 TO 60 HZ)
- Current: 1A MAX
- Shipping Weight: 1 pound (0.45 kg)
- Size: 4 1/2 x 4 x 2 1/8 in. (11.4 X 10.2 X 5.4 cm)
- Color: Dark gray
- Connections: plugs/terminals
- Mounting box: (not included) 4x4 electric
- Fan relay: 5A, 240 VAC, pilot duty, SPDT, latching or non-latching
- Fan relay actuation: Selectable within sensor range
- Fan Delay Settings of 0, 1, 3 (default), 5 and 10 minutes
- Fan Minimum Runtime settings are OFF (default), 3, 5, 10 or 15 minutes
