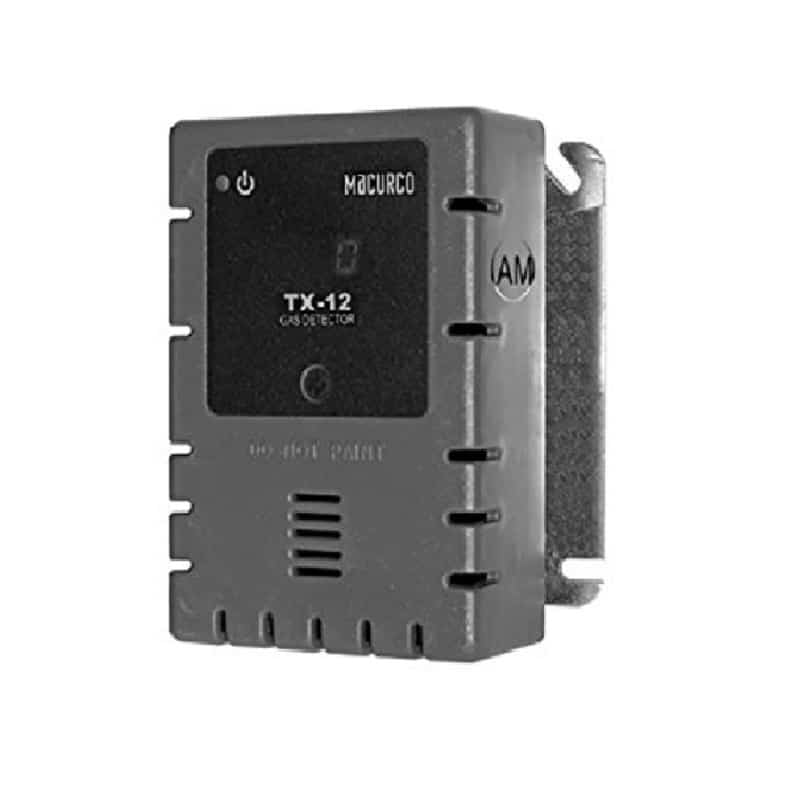

Macurco TX-12-AM Ammonia NH3 Fixed Gas Detector
See all products from macurcoAED 2,625.00 VAT included
Macurco TX-12-AM is a line voltage, dual relay Ammonia (AM) detector and automatic ventilation controller. The TX-12-AM uses a microcomputer controlled, electronic system to measure the concentration of Ammonia, actuate relays and provide a 4-20mA output. The TX-12-AM has a field replaceable, electrochemical sensor (expected life of 2+ years) and optional gas test and calibration kits.
-
free delivery
Above AED1000 in Dubai
-
WARRANTY
For 365 days
-
always authentic
Only Reputed Brands
-
EASY PAYMENT
Multiple payment options
Description
Macurco TX-12-AM Ammonia NH3 is a line voltage, dual relay Ammonia (AM) detector and automatic ventilation controller. The TX-12-AM uses a microcomputer controlled, electronic system to measure the concentration of Ammonia, actuate relays and provide a 4-20mA output. The TX-12-AM has a field replaceable, electrochemical sensor (expected life of 2+ years) and optional gas test and calibration kits. The TX-12-AM is a low level meter capable of displaying from 0-100 ppm of Ammonia.
The TX-12-AM provides Ammonia detection and automatic exhaust fan control for industrial refrigeration, warehouses, hockey rinks or other commercial applications. Ammonia or NH3 is a colorless gas with a pungent, suffocating odor. Note: Shipped as a liquefied compressed gas – easily liquefied under pressure. The TX-12-AM is designed to meet the NIOSH and OSHA standards for Ammonia exposure limits. TX-12-AM can be used stand alone, with the Macurco DVP-120 Detection and Ventilation Control Panel, other fire/security panels or building automation systems.
Features
- ETL Listed to UL 61010-1 and CAN/CSA C22.2 No 61010-1
- Low level meter capable of displaying from 0-100 ppm Ammonia
- The TX-12-AM meets NIOSH and OSHA standards for gas exposure
- Selectable fan and alarm relay activation
- 5 A SPDT fan relay controls starters of exhaust fans
- 0.5 A N.O. or N.C. alarm relay connects to warning devices or control panels
- Supervised system: any internal detector problem will cause the fan & alarm relay to activate
- TX-12-AM mounts on a standard 4x4 electrical box and becomes cover for the box
- Calibration kit is available. One screw allows access for calibration or gas test
- 4-20 mA Current Loop
Specifications
- Power: 100-240VAC (50 TO 60 HZ)
- Current: 1.0 A MAX
- Shipping Weight: 1 pound (0.45 kg)
- Size: 4 1/2 x 4 x 2 3/4 in. (11.4 X 11.4 X 7.0 cm)
- Color: Dark gray
- Connections: plugs/terminals
- Mounting box: (not included) 4x4 electric
- Fan relay: 5 A, 240 VAC, pilot duty, SPDT, latching or non-latching
- Alarm relay: 0.5A 120 V, 60 VA
- Current Loop: 4-20 mA for 0-100ppm NH3, selectable to off or on (default)
- Buzzer: 85 dBA at 10cm settable to off (default) or on
- Digital display: 3 digit LED selectable to off (default) or on
- Operating Environment: 0°F to 125°F (-18?C to 52?C).10 to 90% RH
- Operating altitude: Up to 5,000m (16,404ft)
