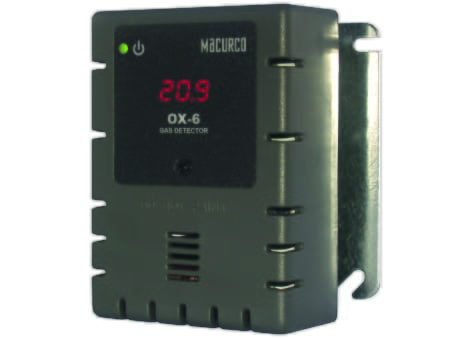

Macurco OX6 Oxygen (O2) Detector
See all products from macurcoAED 1,980.63 VAT included
Macurco OX6 Oxygen (O2) Detector is low voltage, dual relay gas detector, controller and transducers. The 6-Series have selectable 4-20mA output, buzzer and digital display
options. It is an electronic detection system used to measure the concentration of various gases and provide feedback and automatic control to help reduce gas concentrations in parking garages, warehouses, boiler rooms, vehicle maintenance facilities, battery rooms, kitchens or other commercial applications.
In stock
-
free delivery
Above AED1000 in Dubai
-
WARRANTY
For 365 days
-
always authentic
Only Reputed Brands
-
EASY PAYMENT
Multiple payment options
Description
The Macurco 6-Series are low voltage, dual relay gas detector, controller and transducers. The 6-Series have selectable 4-20mA output, buzzer and digital display
options. It is an electronic detection system used to measure the concentration of various gases and provide feedback and automatic control to help reduce gas concentrations in parking garages, warehouses, boiler rooms, vehicle maintenance facilities, battery rooms, kitchens or other commercial applications.
Features
- Supervised system design: detector problem will cause the fan & alarm relay to activate
- Optional calibration test kit allows the OX-6 to be field calibrated and tested
- ETL Listed to UL 61010-1, CAN/CSA C22.2 No 61010-1
- Mounts on a standard 4 x 4 electrical box
- Compatible with the Macurco MRS-485 Modbus Adapter
- ETL Listed to UL 61010-1, CAN/CSA C22.2 No 61010-1
- 4-20mA current loop - compatible with the Macurco DVP-120 Control Panel
- Output: Fan relay, Alarm relay and 4-20mA current loop
- Controls: Digital display (0-25% v/v), buzzer, fan delay, fan minimum runtime
- Factory calibrated
Specifications
- Gas Detection: Oxygen (O2)
- Range: 0-25% by volume
- Default Relay Settings: Fan - 20.2%
- Alarm: 19.5%
- Power: 3 W (max) from 12 to 24 VAC or 12 to 32 VDC
- Current @ 24 VDC: 75 mA in alarm, 50 mA fan relay on and 23 mA stand by
- Shipping Weight: 1 pound (0.45 kg)
- Size: 4 1/2 x 4 x 2 1/8 in. (11.4 X 10.2 X 5.4 cm)
- Color: Dark gray
- Connections: plugs/terminals
- Mounting box: (not included) 4x4 electric
- Fan relay: 5A, 240 VAC, pilot duty, SPDT, latching or non-latching
- Fan relay actuation: Selectable within sensor range
- Fan Delay Settings of 0, 1, 3 (default), 5 and 10 minutes
- Fan Minimum Runtime settings are OFF (default), 3, 5, 10 or 15 minutes
