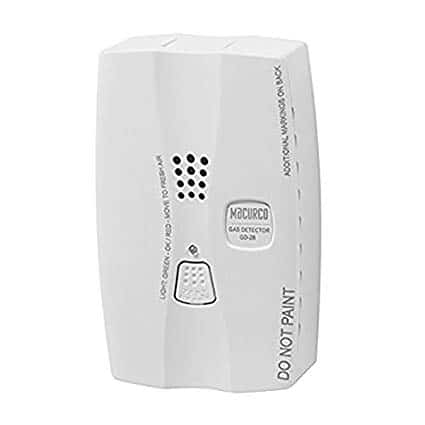

Macurco GD2b Combustible Gas Detector

Name: Macurco GD2b Combustible Gas Detector
SKU: fs10039
Availability: InStock

See all products from macurco

AED 472.50 VAT included

Macurco GD-2B is a low voltage electronic detector of combustible, heating type gases. The GD-2B is designed for connection to Fire Alarm/Burglary Control Panels. The GD-2B is intended for installation in buildings in non-hazardous locations such as residences, retail stores, office buildings, and institutional buildings. This combustible gas detector has been designed to detect methane (natural gas) and propane (LP) gas.

In stock

Compare

Product Code : fs10039 Brand: Macurco Seller: Fireshop1001 Approved by : [woo_pro_badges_extended]

free delivery

Above AED1000 in Dubai
WARRANTY

For 365 days
always authentic

Only Reputed Brands
EASY PAYMENT

Multiple payment options

Description

The Macurco GD-2B is a low voltage electronic detector of combustible, heating type gases. The GD-2B is designed for connection to Fire Alarm/Burglary Control Panels. The GD-2B is intended for installation in buildings in non-hazardous locations such as residences, retail stores, office buildings, and institutional buildings. This combustible gas detector has been designed to detect methane (natural gas) and propane (LP) gas. It is NOT designed to detect smoke, fire or carbon monoxide. The GD-2B is a low voltage (9-32VDC, 12-24VAC) electronic detector of combustible, heating type gases, that has been calibrated for methane (natural gas) and propane (LP) gas. The GD-2B is designed for connection to Fire Alarm/Burglary Control Panels. The GD-2B has a SPST Alarm relay, for connection to control panels or other devices. The GD-2B does NOT detect carbon monoxide. The GD-2B has an optional internal audible sounder.

Features

Designed to meet UL Standard 2075 for the standard for safety for gas and vapor detectors and sensors
Sensitivity tested based on UL 1484 standard for residential gas detectors
10-year solid-state electronic sensor: no maintenance or recalibration
Detects heating gases: propane (LP), natural gas (methane)
Simple installation and operation
Can be self-restoring or latching
SPST alarm and trouble relays
Temperature compensated
Supervised sensor

Specifications

Gas Detection: Combustible Gases
Size: 3-1/8 x 5-1/8 x 1-3/4 inch (7.94 x 13.02 x 4.4 cm)
Shipping weight: 0.54 pound
Voltage: 9-32VDC, 12-24VAC
Current (non-alarm): 40 ma @ 12 VDC, 20 ma @ 24 VDC, 34 ma @ 12 VAC, 17 ma @ 24 VAC
Current (in alarm): 56 ma @ 12 VDC, 28 ma @ 24 VDC, 46 ma @ 12 VAC, 23 ma @ 24 VAC
Operating temperature range: 32C to 120 F
Alarm relay rating: SPST, 100ma, 40VDC
Alarm set point: per UL 1484 (25% LEL)
Sensor maintenance: not required
Color: white
Trouble relay: SPST, 100ma, 40VDC
