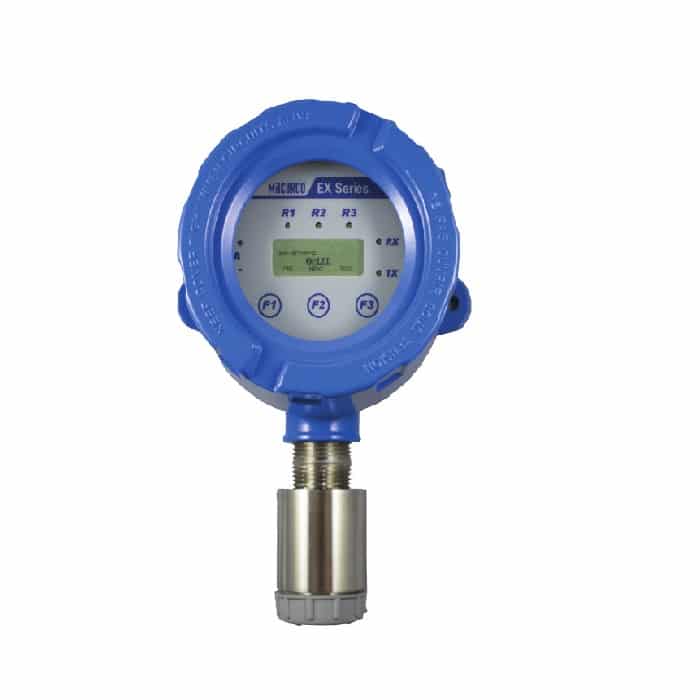

Macurco EX-CH3CO-100L-O Acetone (CH3CO) 0-100%LEL Explosion Proof Monitor

Name: Macurco EX-CH3CO-100L-O Acetone (CH3CO) 0-100%LEL Explosion Proof Monitor
SKU: fs10884
Availability: InStock

See all products from macurco

AED 5,377.05 VAT included

In stock

Compare

Product Code : fs10884 Brand: Macurco Seller: Fireshop1001 Approved by : [woo_pro_badges_extended]

free delivery

Above AED1000 in Dubai
WARRANTY

For 365 days
always authentic

Only Reputed Brands
EASY PAYMENT

Multiple payment options

Description

Macurco EX-CH3CO-100L-O Acetone (CH3CO) 0-100%LEL Explosion Proof Monitors are used for Class 1 Division 1 applications or harsh environments. A brilliant digital display indicates STEL, TWA and peaks daily value concentrations as well as relay status. A three-color backlight will flash depending on the level of alarm for operator safety. Set-up and calibration are accomplished via a non-intrusive magnetic interface that allows programming of all parameters. A remote sensor option is available for difficult or remote monitoring applications. Compatible sensor types include electrochemical and catalytic bead options to provide monitoring solutions for a wide variety of toxic and combustible gas applications. Standard outputs include Modbus RS-485, 4-20 mA and three user-programmable relay contacts.

Features

Electrochemical & Catalytic Bead Sensor Technologies
Display of TWA, STEL, Peak Daily Value
Status Indicating Warning Screens
Non-Intrusive Magnetic Calibration
RS-485 Communication
Three Onboard Relays
4-20 mA Output
Built-in Clock

Specifications

Product: Explosion Proof Acetone (CH3CO) Gas Detector
Brand: Macurco
Model: EX-CH3CO-100L-O
Size: 14.5 x 19.1 x 13 cm
Weight: 4.2 lb. (1.95 kg)
Display: LCD graphic display with backlight
Operating Temp: -40° to 158° F (-40° to 70°C)
Ambient Humidity: 5-95% RH Non-Condensing
Sensor Type: Combustible Gases: Catalytic, Toxic Gases & Oxygen: Electrochemical
Input Power: 24 VDC nominal, range 18 to 30 VDC, 0.3 A DC Total Max
Fuse: F2 on Main Board: Polyswitch 750 mA Polyswitch device resets after fault is cleared and power to the circuit is removed
Relays: Three Relays, SPDT, Dry Contacts
Certificate: FM 3615, CSA C22.2 No.30 Class I, Groups A, B, C, D, Class II, Groups E, F, G; Class III Enclosure Type: 4X, Division 1 Division 2, ANSI/ISA 12.22.01, Class I, Zone 1 AExd II C, IP66 Zone 1, CSA E60079-1 Ex d II C, Class I, Zone 1, IP66
