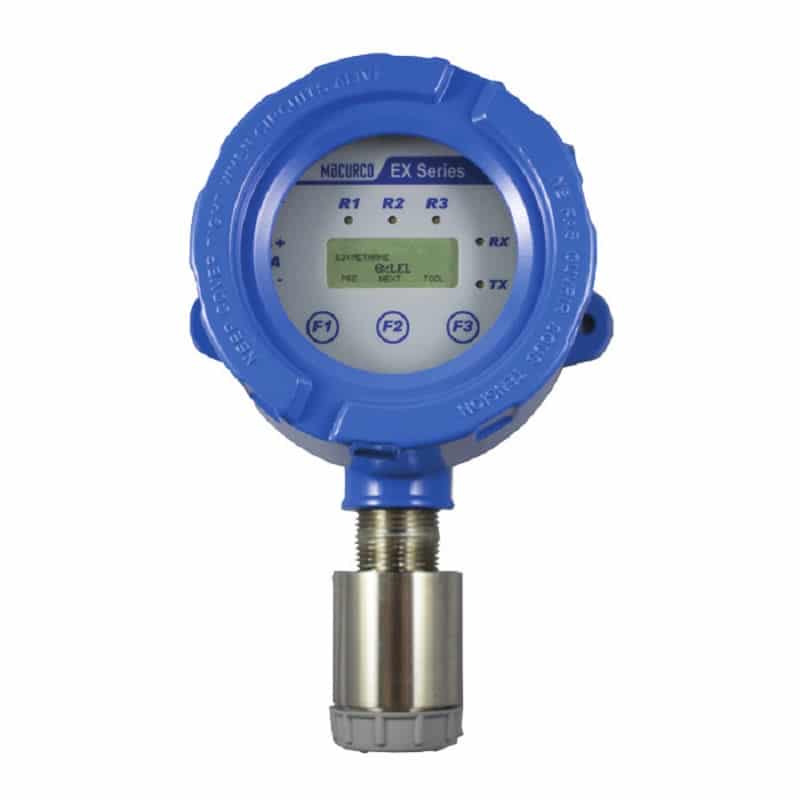

Macurco EX-C2H4-100L-O Ethylene Gas Detector

Name: Macurco EX-C2H4-100L-O Ethylene Gas Detector
SKU: fs10845
Availability: InStock

See all products from macurco

AED 5,376.00 VAT included

Macurco EX-C2H4-100L-O Explosion Proof Ethylene Gas Detectors are used for Class 1 Division 1 applications or harsh environments. A brilliant digital display indicates STEL, TWA and peaks daily value concentrations as well as relay status. A three-color backlight will flash depending on the level of alarm for operator safety. Set-up and calibration is accomplished via the non-intrusive magnetic interface that allows programming of all parameters.

Compare

Product Code : fs10845 Brand: Macurco Seller: Fireshop1001 Approved by : [woo_pro_badges_extended]

free delivery

Above AED1000 in Dubai
WARRANTY

For 365 days
always authentic

Only Reputed Brands
EASY PAYMENT

Multiple payment options

Description

Macurco EX-C2H4-100L-O Explosion Proof Ethylene Gas Detectors are used for Class 1 Division 1 applications or harsh environments. A brilliant digital display indicates STEL, TWA and peaks daily value concentrations as well as relay status. A three-color backlight will flash depending on the level of alarm for operator safety. Set-up and
calibration is accomplished via the non-intrusive magnetic interface that allows programming of all parameters.

A remote sensor option is available for difficult or remote monitoring applications. Compatible sensor types include electrochemical and catalytic bead options to provide monitoring solutions for a wide variety of toxic and combustible gas applications. Standard outputs include Modbus RS-485, 4-20 mA and three user-programmable relay contacts.

Features

RS-485 Communication
Three Onboard Relays
4-20 mA Output
Non-Intrusive Magnetic Calibration
Status Indicating Warning Screens
Display of TWA, STEL, Peak Daily Value
Electrochemical & Catalytic Bead Sensor Technologies
Built-in Clock

Specifications

Product: Explosion Proof Ethylene Gas Detector
Brand: Macurco
Model: Macurco EX-C2H4-100L-O
Size: 14.5 x 19.1 x 13 cm
Weight: 4.2 lb. (1.95 kg)
Operating Temp: -40° to 158° F (-40° to 70°C)
Sensor Type: Combustible Gases: Catalytic, Toxic Gases & Oxygen: Electrochemical
Display: LCD graphic display with backlight
Keypad: Three Non-Intrusive Magnetic switches - F1,F2, F3
Enclosure: Aluminium Pressure Die-Casting Entries: 2 x 3/4 NPT
Input Power: 24 VDC nominal, range 18 to 30 VDC, 0.3 A DC Total Max
Fuse: F2 on Main Board: Polyswitch 750 mA Polyswitch device resets after fault is cleared and power to the circuit is removed
Relays: Three Relays, SPDT, Dry Contacts
