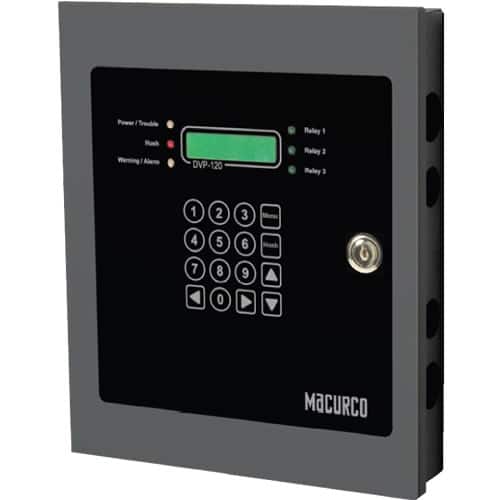

Macurco DVP-120 Analog Gas Detection Panel

Name: Macurco DVP-120 Analog Gas Detection Panel
SKU: fs10047
Availability: InStock

See all products from macurco

AED 5,354.65 VAT included

Macurco DVP-120 Analog Gas Detection Panel has a variety of options to meet the needs of your facility. These controllers in conjunction with Macurco gas detectors provide automatic control to help maintain an acceptable environment in parking garages or other applications. These systems are easily configured making installation hassle-free.

Compare

Product Code : fs10047 Brand: Macurco Seller: Fireshop1001 Approved by : [woo_pro_badges_extended]

free delivery

Above AED1000 in Dubai
WARRANTY

For 365 days
always authentic

Only Reputed Brands
EASY PAYMENT

Multiple payment options

Description

The Macurco controller family has a variety of options to meet the needs of your facility. These controllers in conjunction with Macurco gas detectors provide automatic control to help maintain an acceptable environment in parking garages or other applications. These systems are easily configured making installation hassle-free. The control panel series is designed to meet specifications for safety in enclosed parking garages, including the Uniform Building Code and OSHA 50ppm CO requirements. With multiple control panel options Macurco will help you find the right controller for your specific application.

Features

12 analog (4-20mA) sensor connections
DVP-120M/B : 87 digital sensor connections (RS-485) + 12 analog (4-20mA) sensor connections
Coverage Area: Up to 60,000 sq. ft.
Two 24VDC drivers for Horn / Strobe
Three 10A SPDT Fan / Alarm Relays
12 analog (4-20mA)
120-240 VAC input
Auto recognizes Macurco detectors
Settings are customizable, default is per OSHA
DVP-120B : BACnet MSTP output

Specifications

Size: 10.5 X 37.75 X 5.08 cm
Weight: 6.5 lbs (2.9 kg)
Voltage/Current: Power Input: 90 250 VAC, 1 Amp, 47 63 Hz, single phase
Operating Temperature: 32F to 104F (0C to 40C)
Ambient Humidity: 0% to 95% RH non-condensing
Display: LCD display: 2 rows of 16 charactersDisplay: LCD display: 2 rows of 16 characters with backlight
Mounting: Mounting holes in each corner
Relays: Three 10A, 240 VAC SPDT fan/alarm relays
Settings: External keypad for user selection of the transducer/alarm display and setting the configuration
Status Indicators : (LED): Power, ALARM/warning, hush, Relay 1, Relay 2 & Relay 3
Alarms: Drivers for external Horn and Strobe, externally Alarms: Drivers for external Horn and Strobe, externally visible system, alarm and relay status indicators
Enclosure: Lockable NEMA 1 type enclosure
Certifications: ETL Listed to UL 508A, CAN/CSA-C22.2 No14-13, LADBS Approved
Warranty: Two Year Limited Warranty
