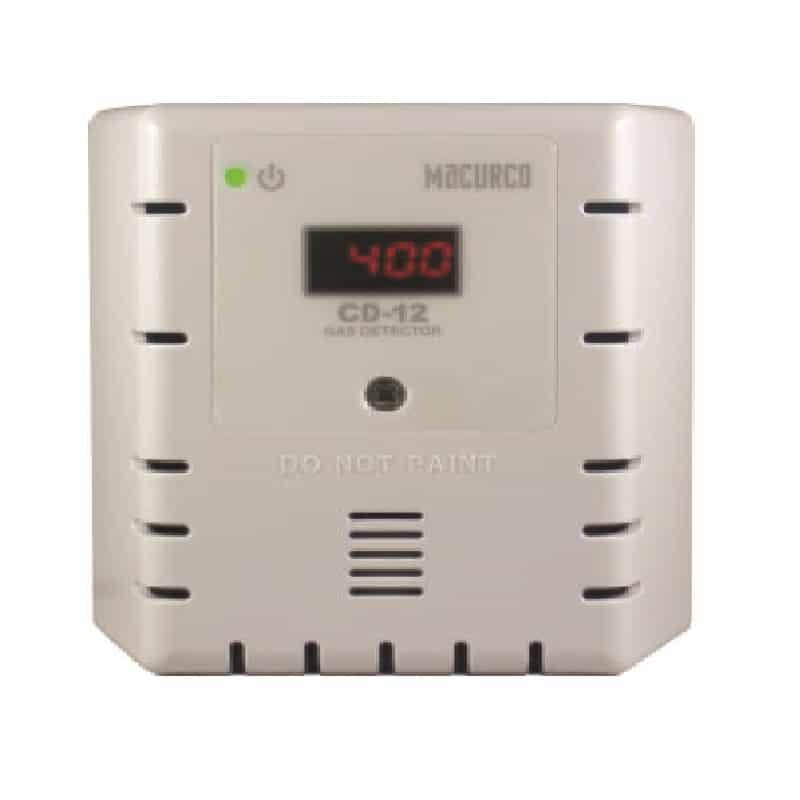

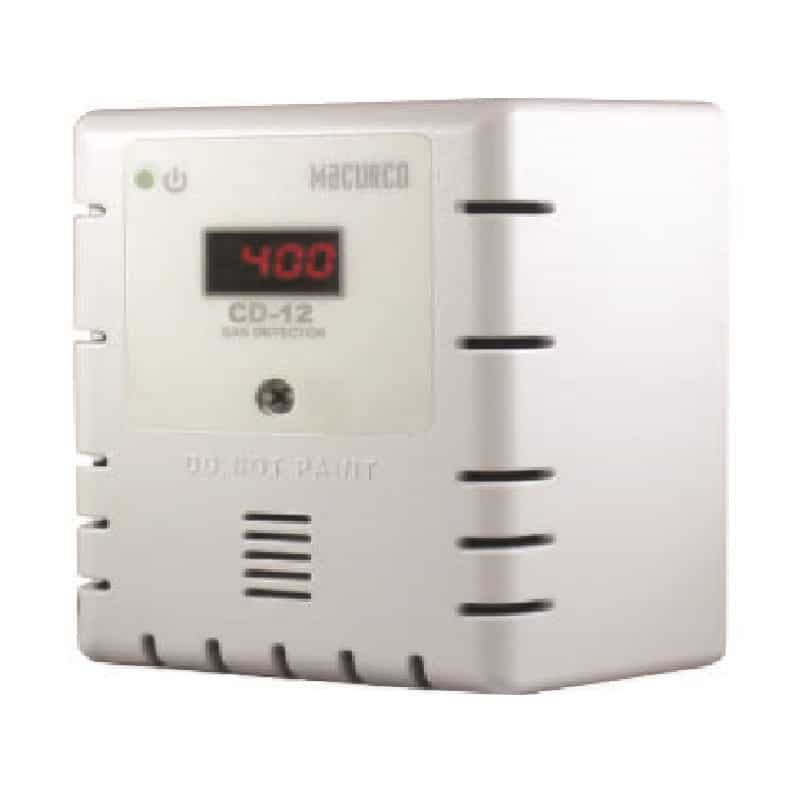

Macurco CD-12H Carbon Dioxide CO2 Fixed Gas Detector – Auto Calibration

Name: Macurco CD-12H Carbon Dioxide CO2 Fixed Gas Detector - Auto Calibration
SKU: fs10784
Availability: InStock

See all products from macurco

Original price was: AED 2,166.15.Current price is: AED 2,030.39. VAT included

Macurco CD-12-H Carbon Dioxide CO2 Fixed Gas Detector – Auto Calibration are line voltage powered (100-240VAC), dual relay gas detector, controller and transducers. The 12-Series utilizes an internal switching power supply that is capable of using line voltage between 100 and 240VAC and 50-60Hz. The 12-Series have selectable 4-20mA output, buzzer and digital display options.

In stock

Compare

Product Code : fs10784 Brand: Macurco Seller: Fireshop1001 Approved by : [woo_pro_badges_extended]

free delivery

Above AED1000 in Dubai
WARRANTY

For 365 days
always authentic

Only Reputed Brands
EASY PAYMENT

Multiple payment options

Description

The Macurco 12-Series are line voltage powered (100-240VAC), dual relay gas detector, controller and transducers. The 12-Series utilizes an internal switching power supply that is capable of using line voltage between 100 and 240VAC and 50-60Hz. The 12-Series have selectable 4-20mA output, buzzer and digital display options. It is an electronic detection system used to measure the concentration of various gases and provide feedback and automatic control to help reduce gas concentrations in parking garages, warehouses or other commercial applications.

Features

The CD-12 uses an automated background calibration program to set the clean air level on a regular basis
ETL LISTED Certified to CAN/CSA Std. C22.2 No 61010-1 Conforms to UL Std. 61010-1
Low level meter capable of displaying from 0-2000 ppm of CO2
Selectable fan and alarm relay activation
5 A SPDT fan relay controls starters of ventilations
0.5 A N.O. or N.C. alarm relay connects to warning devices or control panels
4-20 mA Current Loop

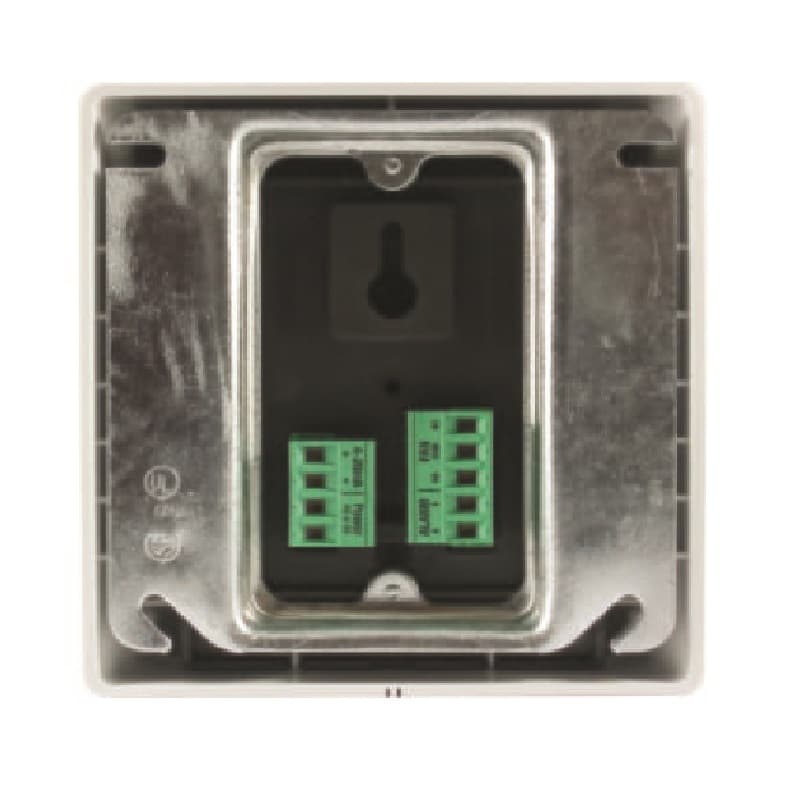

CD-12 mounts on a standard 4x4 electrical box and becomes cover for the box
Supervised system: any internal detector problem will cause the fan & Alarm relay to activate
Calibration kit is available. One screw allows access for calibration or gas test

Specifications

Product: Fixed Gas Detector Auto Calibration
Brand: Macurco
Model: Macurco CD-12H
Power: 100-240VAC (50 TO 60 HZ)
Current: 1.0 A MAX
Shipping Weight: 1 pound (0.45 kg)
Size: 4 1/2 x 4 x 2 1/8 in. (11.4 X 11.4 X 5.3 cm)
Color: White or dark gray
Connections: plugs/terminals
Mounting box: (not included) 4x4 electric
Fan relay: 5 A, 240 VAC, pilot duty, SPDT, latching or non-latching
Alarm relay: 0.5A 120 V, 60 VA
Buzzer: 85 dBA at 10cm settable to off (default) or on
Digital display: 4 digit LED selectable to off or on(default).
Operating Environment: 32°F to 122° F (0?C to 50?C), 10 to 90% RH non-condensing
